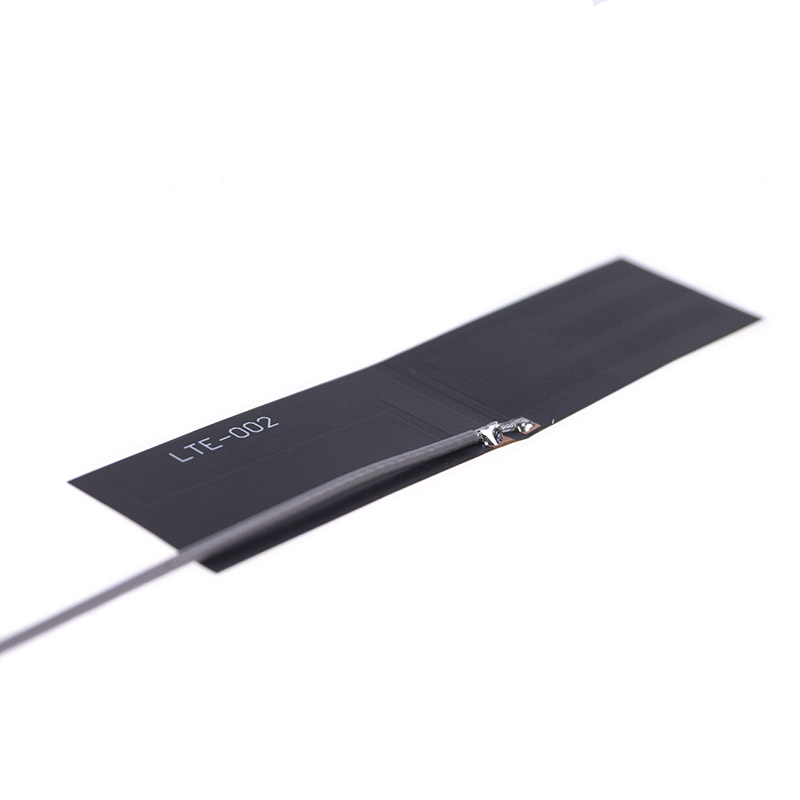

Omnidirectional internal GSM/UMTS/LTE antenna
The omnidirectional internal antenna is designed for receiving and transmitting signals in GSM/UMTS/LTE networks. It operates in frequency bands 700/800/900/1700/1800/1900/2100/2600 MHz. The antenna is ideal for use with cellular modems and routers, ensuring reliable connectivity.
The antenna includes a 400mm cable terminated with a UF.L connector, making it easy to connect to devices. Thanks to the double-sided 3M adhesive tape it is equipped with, the antenna can be easily mounted on various surfaces such as glass or plastic, providing flexibility and straightforward installation.
Specifications connector UFL:
UFL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the UFL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.
Cable specifications Hirose 066:
The Hirose 066 coaxial cable is compatible with connectors that are applicable to a 1.32 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as UFL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
Technical parameters can be found in the attached datasheet.
