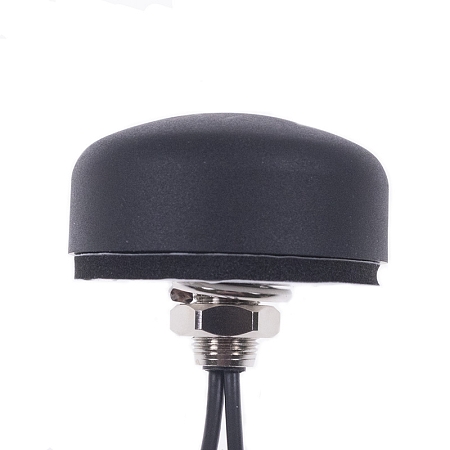

Antenna LTE/GPS Mounting PUCK, RG174/3m, SMA(m)/SMA(m)

Product code: AO-AKOM-36SS /Manufacturer: SECTRON

ao-akom-36ss-obrazek1 ss ss

18.32 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Combined GSM/UMTS/LTE/GPS antenna

Omnidirectional combined antenna suitable for GSM/UMTS/LTE/GPS signal receiving. The antenna functions in the bands of 800/900/1700/1800/1900/2100/2600/2700/1575.42 MHz. In combination with amplifier its gain is around 30 dBi. The antenna is suitable for cars. The antenna is supplied with two 3m cables with two SMA(m) connectors.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Input voltage: 2.7 - 5.5 V DC Polarization: Linear / R.H.C.P.
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 23.3 x 52.7 mm Directivity: Omni-directional
Technology : GSM / UMTS / LTE / GPS Weight: 132.25 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 0 dBi / 30 dBi TYPE OF ATTACHMENT: Mounting

Documents for download

AO-AKOM-36SS8.pdf (956.336 kB)
