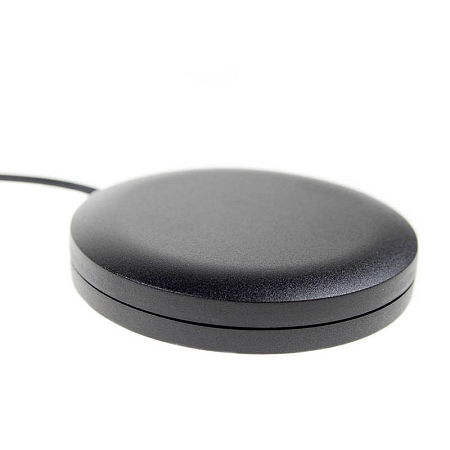

Antenna LTE Magnetic 018L, 2 dBi, SMA(m), RG174/3m

Product code: AO-ALTE-G018LS /Manufacturer: SECTRON

New item
ao-alte-g018ls-2 ao-alte-g018ls-4 ao-alte-g018ls-3 ao-alte-g018ls-1

8.61 EUR

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional magnetic GSM/UMTS/LTE antenna

Omnidirectional magnetic antenna designed for signal reception in GSM/UMTS/LTE technologies. The antenna operates in the bands 698-960/1710-2690 MHz. Is suited for connection to terminals / modems / routers. Thanks to the built-in magnet, it is suitable for placement on any metal surface. The antenna is supplied with a 3 m RG174/U cable terminated with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -20 °C - +85 °C
Dimensions: 71.5 x 14.5 mm Directivity: Omni-directional
Technology : GSM / UMTS / LTE VSWR: <3.0:1
GAIN: 2 dBi TYPE OF ATTACHMENT: Magnetic
