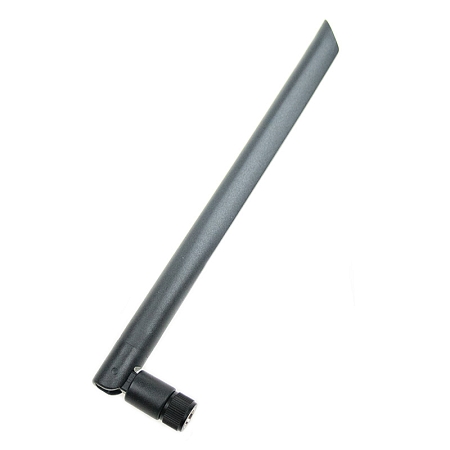

Antenna LTE Stick 90°/180° 410L, 3 dBi, SMA(m)

Product code: AO-ALTE-G410LS /Manufacturer: SECTRON

New item
ao-alte-g410ls-lte-antena-01 ao-alte-g410ls-lte-antena-03 ao-alte-g410ls-lte-antena-02 ao-alte-g410ls-lte-antena-04

5.30 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional antenna with connector SMA is suitable as receiver of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. It is suited for modems/ routers.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: N/A
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 198 x 13 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE
Weight: 26.8 g VSWR: < 3.0:1
Radiation angle: H 360° V 30° GAIN: 3 dBi
TYPE OF ATTACHMENT: Screw

Documents for download

AO-ALTE-G410LS2.pdf (892.057 kB)
