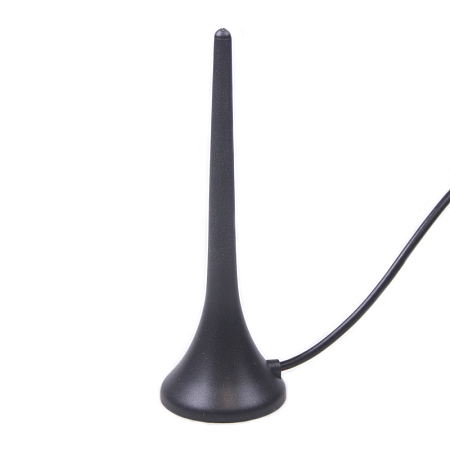

Antenna UMTS/GSM Magnetic 20, 2 dBi, SMA(m), RG174/3m

Product code: AO-AUMTS-M2S /Manufacturer: SECTRON

Sale
ao-aumts-m2s-gsm-antenna-datasheet-02 ao-aumts-m2s-gsm-antenna-datasheet-01 ao-aumts-m2s-gsm-antenna-datasheet-03 ao-aumts-m2s-gsm-antenna-datasheet-04

2.43 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional magnetic GSM/UMTS antenna

Omnidirectional antenna for GSM/UMTS technologies and operates in bands 800/900/1800/1900/2100 MHz. It is suited for modems/routers. The antenna has a magnetic base and is suitable for placement on any metal surface. e antenna is suitable for cars. It is supplied with 1.5 m cable with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -20 °C - +60 °C Dimensions: 101x 34 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 65 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 2 dBi
TYPE OF ATTACHMENT: Magnetic
