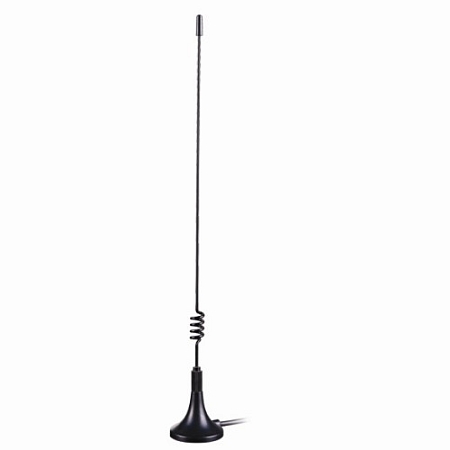

Antenna UMTS/GSM Magnetic 821, 3 dBi, SMA(m), RG174/3m

Product code: AO-AUMTS-G821S /Manufacturer: SECTRON

New item
ao-aumts-g821s

4.66 EUR

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional antenna GSM/UMTS

Omnidirectional antenna for GSM/UMTS technologies. The antenna operates in frequency bands 800/900/1700/1800/1900/2100 MHz. The antenna is suited for modems/routers.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 29.4 x 229 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 57.22 g VSWR: <2.5:1
Radiation angle: H 360° V 30° GAIN: 3 dBi
TYPE OF ATTACHMENT: Magnetic

Documents for download

AO-AUMTS-G821S9.pdf (1218.986 kB)
