Directional internal WiFi antenna

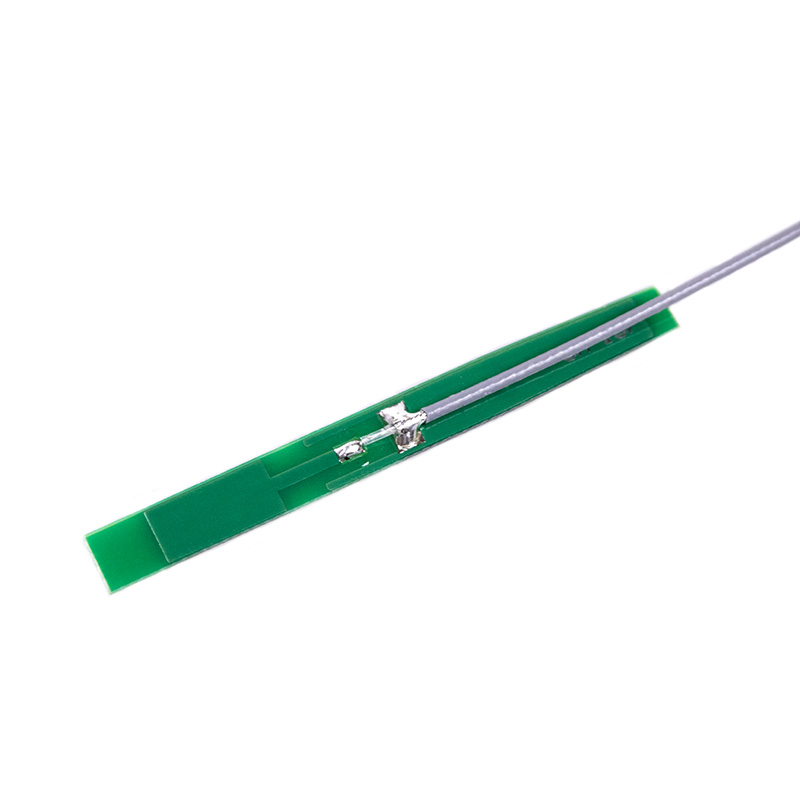

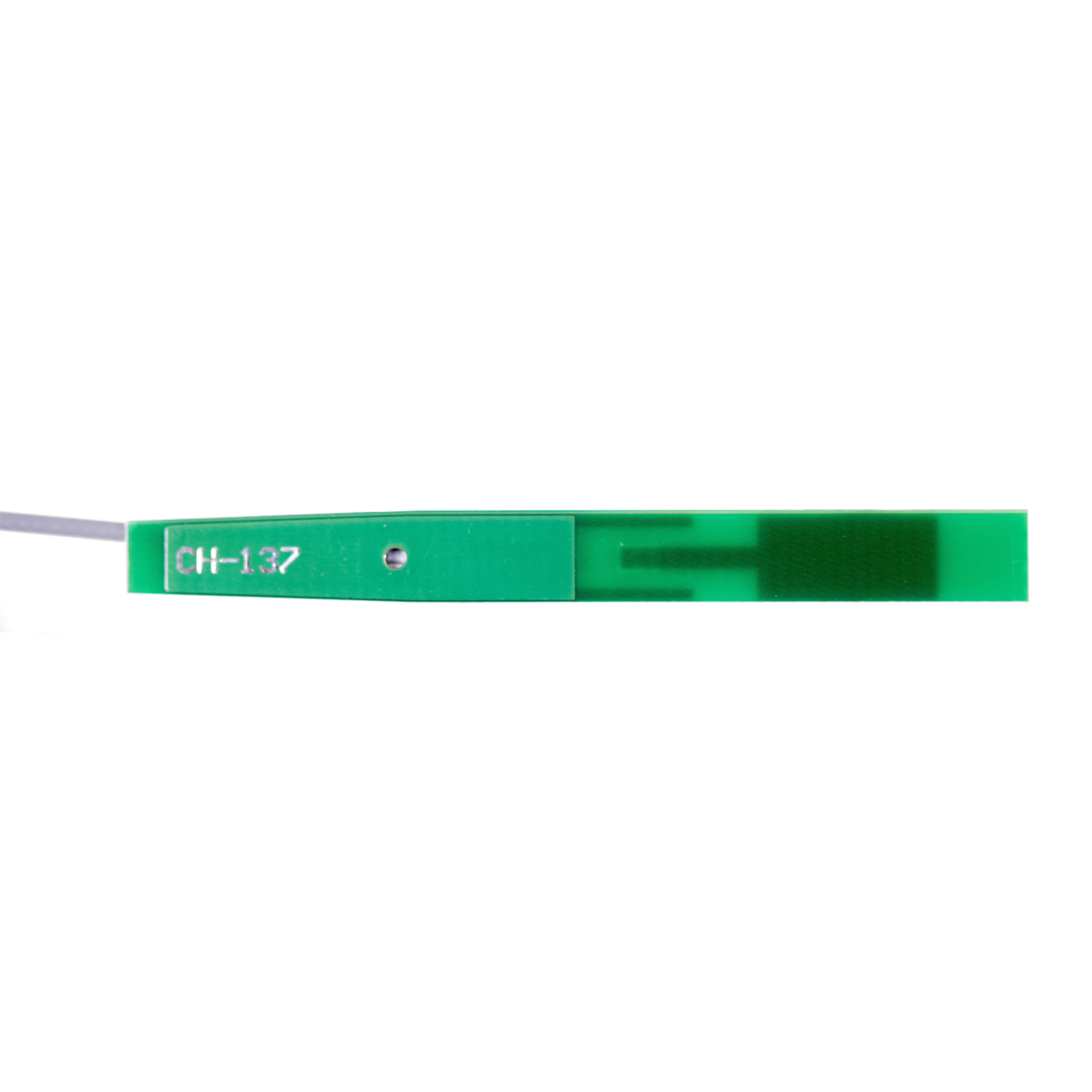

A directional internal WiFi antenna with a gain of 3.5 dBi is designed for reliable signal transmission in both the 2.4 GHz and 5 GHz bands. It ensures stable and high-quality internet connectivity via Wi-Fi and is ideal for integration into devices supporting WLAN technology. Thanks to its compact dimensions and simple connection, it is suitable for a wide range of devices.

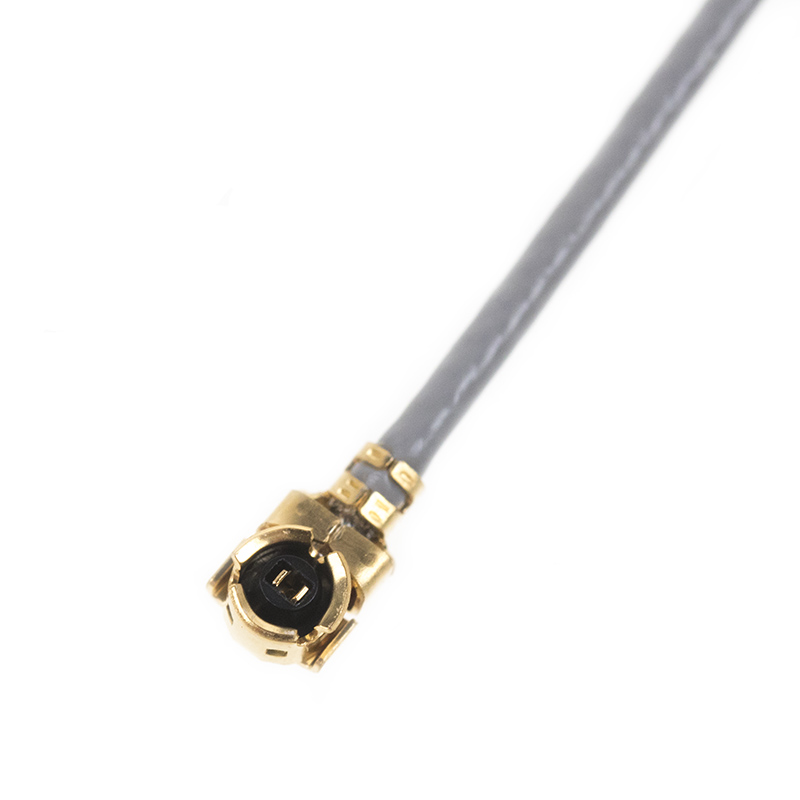

The antenna is supplied with a coaxial cable measuring 1.13 mm in diameter and 600 mm in length, terminated with an IPEX MHF-4L (f) 90° connector.
Specifications cable 1.13:
The LP 040 coaxial cable is compatible with connectors that are applicable to a 0.81 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
Specifications connector IPEX MHF:
IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting/interconnecting RF components. The characteristic impedance of the connector is 50 Ohms and the operating frequency range up to 9 GHz.
More information can be found in the attached datasheet.
