Product code: AW-A24G-SPK
Producer: SECTRON

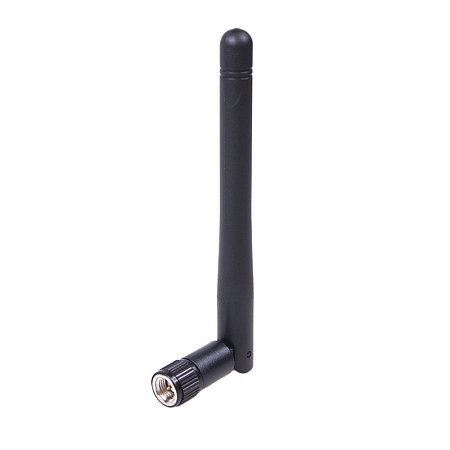

Antenna WiFi Connector Mount SPK, 2.4 GHz, 90°/180°, SMA(m)

Product code: AW-A24G-SPK
Producer: SECTRON

Antenna WiFi Connector Mount SPK, 2.4 GHz, 90°/180°, SMA(m)

Omnidirectional WiFi antenna working in band 2.4 GHz. It is suitable for homes or offices for connection to cellular routers.

8.68incl. VAT (21%) / pc

excl. VAT 7.17 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Antenna WiFi

Omnidirectional WiFi antenna working in band 2.4 GHz. It is suitable for homes or offices for connection to cellular routers. It has an SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel N/A
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -20 ~ +55  °C Dimensions 108 x 10  mm , 87 x 30.7 x 10  mm
Storage temperature -30 - +55  °C Directivity Omnidirectional
Weight 8.11  g Gain 1.5  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Connector mount
