Product code: AO-SFES-01
Producer: SECTRON

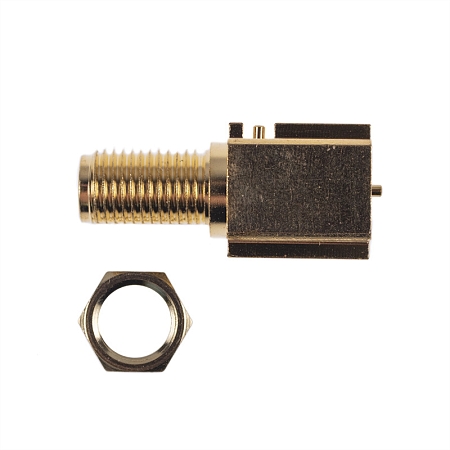

Antenna switch SMA(f) straight EDGE, toothed washer

Product code: AO-SFES-01
Producer: SECTRON

Antenna switch SMA(f) straight EDGE, toothed washer

Antenna switch SMA (f) designed for panel mounting using the EDGE method.

5.87incl. VAT (21%) / pc

excl. VAT 4.85 € / pc

Price from 10 pieces 3.88 €

Price from 100 pieces 3.48 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Antenna switch SMA (f) straight, EDGE

The antenna switch is ideal for portable wireless devices that allow automatic switching between the internal antenna and the higher-gain external antenna.

Antenna switch SMA (f) designed for panel mounting using the EDGE method a toothed washer is included.

Parameters:

 •  Frequency: 12.4 GHz flexible cable,18 GHz semi-rigid cable
 • VSWR: 1.15 + 0.02 x f GHz for straight connector typical
                1.25 + 0.025 x f GHz for right angle connector typical
 •  Nominal* Impedance*: 50 Ω
 •  Temperature range: ± 50 °C
 •  Insulation Resistance: 5 000 MΩ min.
 •  Voltage: 500 V AC (rms)

Material and finish:

 • Body: Brass / Gold
 • Contact 1: Beryllium Copper / Gold
 • Contact 2: Beryllium Copper / Gold
 • Contact 3: Brass / Gold
 • Sleeve 1: Brass / Gold
 • Sleeve 2: Brass / Gold
 • Insulator 1: Teflon / -
 • Insulator 2: Teflon / -
 • Insulator 3: Teflon / -
 • Spring: Stainless Steel / -
 • Nut: Brass / Gold

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

Connector SMA(f)

Documents to download
