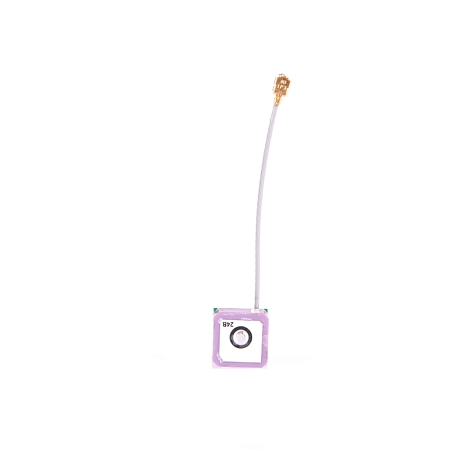

Internal Patch Antenna GPS, Active, 10x10x6, 25 dBi, IPEX MHF I, 42 mm Cable Length

Product code: AP-AP10-25U /Manufacturer: SECTRON

ap-ap10-25u u u

7.57 EUR

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GPS antenna

Omnidirectional GPS antenna. The antenna operates in band 1575.42 MHz. In combination with integrated amplifier, this active antenna achieves gain of up to 25 dBi in GPS band. It is suitable for use in cars and other vehicles.

More information can be found in the attached datasheet.


Parameters

impendance: 50 Ohm Cable: 1.13 RF coaxial
Connector: U.FL(m) Maximum input power: 10 W max.
Input voltage: 1.8 - 3.3 V DC Polarization: R.H.C.P.
Execution: Internal Operational temperature: -40 °C - +85 °C
Dimensions: 10 x 10 x 6 mm Directivity: Omni-directional
Technology : GPS Weight: 2.62 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 25 dBi TYPE OF ATTACHMENT: Soldered

Documents for download

AP-AP10-25U_DS.pdf (1006.471 kB)
