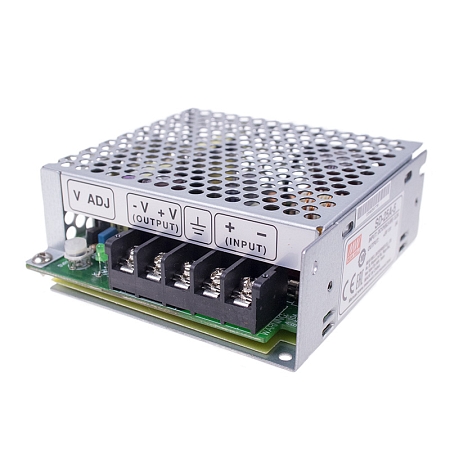

Insulated converter DC/DC
Insulated DC / DC converter in a metal housing with screw terminals for mounting on the Chassis. It is suitable for stabilization and regulation to the required voltage level.
The converter is suitable for a wide range of projects, including telecommunications equipment, industrial equipment and consumer electronics.
Specifications:
• Input voltage: 2V/DC - 18 V/DC
• Output voltage (max.): 5 V/DC
• Output current: 5 A
• Power: 25 W
• Input voltage ratio: 2:1
• Overload protection by current limitation, auto recovery
• Galvanic separation of input and output
• Insulation voltage between input and output: 1500 V
• Adjustable voltage output
• Short circuit resistant
• Mounting: screw terminals
• Dimensions (l x w x h): 99.00 x 97.00 x 36.00 mm
• Weight 366.67g
Technical parameters can be found in the attached datasheet.
