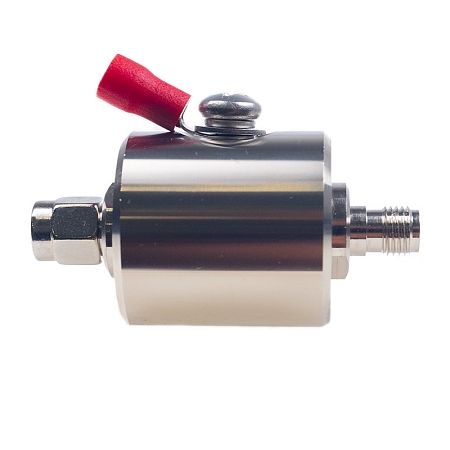

Lightning arrestor SMA(m)-SMA(f)
A lightning arrester is a device that protects electrical equipment and devices from damage by electrical surge and direct and indirect lightning strikes.
Compatible with SMA(m) a SMA(f) RF connectors. A reliable lightning arrester is designed for broadband use 0 - 3 GHz.
Features:
• Frequency range: 0 - 3 GHz
• VSWR: ≤ 1.2
• Insertion loss: ≤ 0.2 dBi
• Impedance: 50 Ω
• Material: Brass
• Operating temperature: -40 °C to +85 °C
Technical parameters can be found in the attached datasheet.
