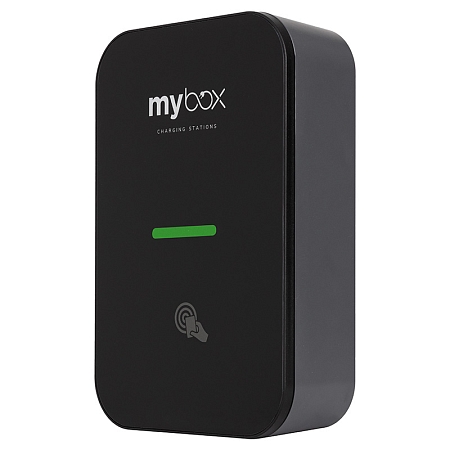

AC charging station Wallbox MyBox HOME 11 kW (2nd generation), straight Type 2 cable
Key features:
- Easy mounting on a wall or post.
- A Czech product made from European components.
- Easy integration with Smart Home control systems. Control all your devices from one place.
- Smart LED indicators show the status of the charging connector. A green light means you can charge.
- Communication via Wi-Fi.
- DC 6 mA leakage detection.
- Connection to a photovoltaic system: use surplus energy from your home solar installation and reduce electricity costs.
- Dynamic load management module: prevents the main circuit breaker from tripping when another high-power appliance is switched on (optional accessory at extra cost).
- Authorisation system: restrict access to the charging station. Users can be authorised with an RFID chip reader (optional accessory at extra cost).
- Connection to control software: remote management of users and the station itself. Operation via the MyBox mobile app.
A subsidy from the Czech Nová zelená úsporám programme can be obtained towards a MyBox charging station. Find more information in the Nová zelená úsporám (NZÚ).
This product by Czech manufacturer Elexim consists exclusively of available, high-quality components from leading European manufacturers.
The MyBox HOME AC charging station (2nd generation) stands out for its reliability, modern design and easy operation. It is intended for charging electric vehicles in households and small businesses. It offers up to 11 kW. This MyBox HOME charging station (EL-MB-HOME1-C) is equipped with a straight Type 2 cable, 5 m long.
Compared with the 1st generation, the 2nd generation 11 kW wallbox has a new control unit, a new mobile app and supports a wireless WiFi connection to the dynamic load management module.
The MyBox HOME wallbox can be fitted with a dynamic load management module, which prevents the main circuit breaker from tripping when a heat pump or another high-power appliance is switched on. The dynamic load management module is mandatory within the NZÚ subsidy programme. The module is not included with the EL-MB-HOME1-C charging station and can be purchased from our e-shop.
The SensorBox and MyBox HOME station can be connected wirelessly via Wi-Fi or using the RS485 interface.
This product by Czech manufacturer Elexim consists exclusively of available, high-quality components from leading European manufacturers.
The MyBox Home electric vehicle charging station is made from durable plastic and tempered glass and resists adverse weather and mechanical damage. The front panel can be customised.
With an operating temperature range of -30 °C to 50 °C, you can reliably charge your electric vehicle battery in both cold and hot weather. The station can be safely installed indoors or outdoors.
Installation services
SECTRON holds a certified professional qualification for installing electric vehicle charging stations.
Specifications:
- Max. input current: 3 × 16 A
- Max. output power: 11 kW
- Max. output power per connector: 11 kW
- Max. output current per connector: 3 × 16 A
- AC output voltage: 400 V (3P+N+PE)
- Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5 to 95% non-condensing
- Dimensions: 200 x 305 x 105 mm
- Station weight without cable: 4 kg (without cable)
MyBox charging stations are designed with sustainability in mind. European-made components ensure long-term functionality and trouble-free servicing.
The stand for the 11 kW MyBox HOME wallbox is not included.
Technical parameters can be found in the attached datasheet.
