AC charging station MyBox Plus, twisted cable Type 2 (Mennekes), RFID, RCD, OVP
Key Features:
• Easy to mount on a wall or post.
• A Czech product made from European components.
• Possibility of connection with PV plants.
• Socket (Type 2) – for easy connection of your own charging cable.
• MyBox mobile application – you will immediately find out important information about the status of the wallbox and the charging process.
• Smart LED indicators inform about the status of the charging connector. If the green light is on, you can charge.
• Communication via Ethernet or Wi-Fi network.
• DC 6 mA leakage detection.
• Combined circuit breaker with protector.
• Overvoltage protection.
• Electricity meter with MID certification.
• Authorization system RFID reader + 2 cards.
• OCCP protocol support.

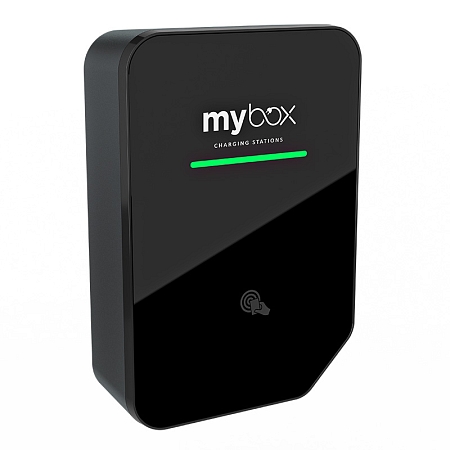

The Wallbox MyBox Plus AC charging station stands out for its reliability and modern design with a beveled edge that serves as a holder for the Type2 socket. It is intended for homes, businesses and public places. It is suitable for installation in public places with a higher risk of vandalism or cable wear. The Wallbox has a power of 22 kW, which allows you to use the full potential of any electric car. This MyBox Home charging station (EL-MB-PLUS-R-RCD-OVP-TC) is equipped with a 4 m long Type 2 (Mennekes) twisted cable. It is also equipped with a combined circuit breaker with a protector, MID electricity meter, overvoltage protection and an authorization system with an RFID reader that enables authorization of users. There are also 2 cards available.
A dynamic power control module can also be purchased, which prevents the main circuit breaker from tripping even if the heat pump or other powerful appliance is switched.
It’s a product of the Czech manufacturer Elexim, consisting of only available quality components from leading European manufacturers. Charging stations it can be connected to a photovoltaic power plant.
The charging stations are designed with sustainability in mind. The components of European production guarantee long-term functionality and problem-free service.
The MyBox Plus charging station is similar to the MyBox Home wallbox in terms of parameters. However, it is characterized by the beveled edge that highlights the elegant look of the station.
The charging station is made of resistant plastic and tempered glass (with the possibility of printing) and it is resistant to adverse weather and mechanical damage. Thanks to the operating temperature from -30 °C to +50 °C, you can reliably charge the battery of your electric car in both cold and hot weather. You can safely install the charging station indoors or outdoors as well.
All the MyBox charging stations have a charging power of up to 22 kW. The MyBox Plus model provides with charging electric cars and plug-in hybrids. Currently, the majority of all EVs uses
11 kW when charging. Therefore, this station is also ready for the future, when electric cars will use the high power of AC charging stations.
Specifications:
• Max. input current: 3 × 32 A
• Max. output power: 22 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (3P+N+PE)
• Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5 to 95% non-condensing
• Dimensions: 410 × 280 × 120 mm
• Weight: 5.5 kg
Technical parameters can be found in the datasheet attached.
