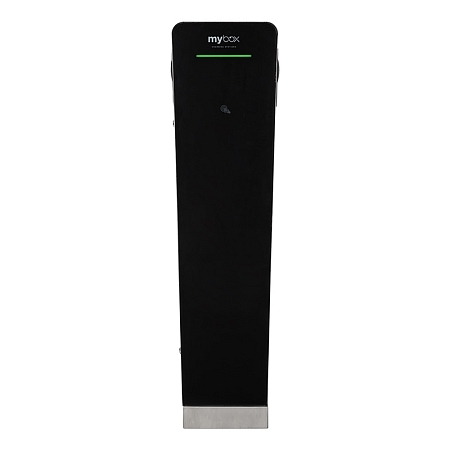

AC standing charging station MyBox POST 2x 22 kW - 2 sockets, painted steel, without cables
Key features:
• Case made of painted steel, glass and European components.
• Secure authorization (e.g. using RFID).
• Possibility of connection with PV plants.
• Advanced management options.
• Dynamic power management module support (optional accessory).
• 2× Electricity meter with MID certification.
• 2× Combined circuit breaker with protector.
• Temperature kit.
• DC 6 mA leakage detection.
• Front lockable door for maintanence access.
• Smart LED indicators – you will always have an overview of the status of the charging connectors.
• Communication via Wi-Fi/LAN or 4G/LTE modem (optional accessory).
• Open Charge Point Protocol (OCPP).
• Integrated electricity meter – easy reading of consumption and possibility of imposing a fee.
• OCPP 1.6 communication protocol.
• Protection against vandals – surface treatment for easy removal of graffiti.
This charging station is a product of the Czech manufacturer Elexim, consisting of only available quality components from leading European manufacturers. It enables the connection with a photovoltaic power plant.
The Wallbox MyBox Post AC charging station stands out with its high-quality chassis in a combination of painted steel and glass. This combination of steel and tempered glass gives an impression of luxury and guarantees maximum safety. The AC charging with a power of 2×22 kW enables the charging of two electric cars at the same time.Thanks to its advanced functions, configuration options and robust construction, this station is ideal for corporate and public charging.
At an operating temperature of -30 °C to +50 °C, you can reliably charge the battery of your electric car in cold and steamy weather. You can safely install the charging station indoors and outdoors.
Advanced functions will satisfy even demanding users. This MyBox Post charging station (EL-MB-POST-S)) is not equipped with the Type2 cables. We offer cables in our portfolio. Cable selection is optional twisted or straight.
The MyBox Post charging station includes temperature kit, 2x integrated electricity meter with MID certification, 2x combined circuit breaker with protector and an authorization system with an RFID reader that enables authorization of users. There are also 4 cards.
You can also buy a module for dynamic power control, which prevents the main circuit breaker from tripping even when a heat pump or other powerful appliance is switched.
Because the wallbox provides twice the power of 22 kW, charging will be just as fast, whether it is charging one or two cars. In addition, the MyBox Profi charging station enables connection with other stations, thereby up to 24 charging points can be created.
Most MyBox charging stations have a charging power of up to 22 kW. Currently, the majority of all EVs uses 11 kW when charging. Therefore, this station is also ready for the future, when electric cars will use the high power of AC charging stations.
Specifications:
• Max. input current: 3 × 64 A
• Max. output power: 44 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (3P+N+PE)
• Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5 to 95 % non-condensing
• Dimensions: 370 × 1420 × 200 mm
• Weight: 52 kg
Technical parameters can be found in the datasheet attached.
