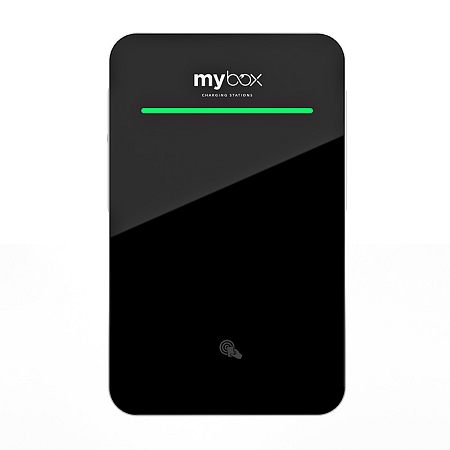

AC charging station MyBox PROFI, 2x spiral cable Type 2, stainless steel
Key features:
• Easy to mount on a wall or post.
• Case made of stailess steel, glass and European components.
• Secure authorization (e.g. using RFID).
• Possibility of connection with PV plants.
• Dynamic power management module support (optional accessory).
• Electricity meter with MID certification.
• Combined circuit breaker with protector.
• DC 6 mA leakage detection.
• Front lockable door.
• The possibility of integrating a display for displaying the charging status or advertising videos.
• Smart LED indicators – you will always have an overview of the status of the charging connectors.
• Communication via Wi-Fi/LAN or 4G/LTE modem (optional accessory).
• Open Charge Point Protocol (OCPP).
• Integrated electricity meter – easy reading of consumption and possibility of imposing a fee.
• OCPP 1.6 communication protocol.
• Protection against vandals – surface treatment for easy removal of graffiti.
The AC MyBox Profi charging station is distinguished by its high-quality construction in a combination of stainless steel and glass (with the possibility of printing). This combination of steel and tempered glass gives an impression of luxury and guarantees maximum safety. The wallbox with a power of 2×22 kW enables the charging of two electric cars at the same time. It is suitable for use in companies, hotels, shopping centers and other public spaces. Thanks to the operating temperature from -30 °C to +50 °C, you can reliably charge the battery of your electric car in both cold and hot weather. You can safely install the charging station indoors or outdoors as well.
Advanced functions will satisfy even demanding users. This MyBox Profi charging station (EL-MB-PROFI-SS-TC) is equipped with two 4 m long spiral Type 2 (Mennekes) cables.
The MyBox Profi charging station includes a 2x integrated electricity meter with MID certification, 2x combined circuit breaker with protector and an authorization system with an RFID reader that enables authorization of users. There are also 4 cards.
You can also buy a module for dynamic power control, which prevents the main circuit breaker from tripping even if the heat pump or other powerful appliance is switched
This charging station is a product of the Czech manufacturer Elexim, consisting of only available quality components from leading European manufacturers. It enables the connection with a photovoltaic power plant.
One MyBox Profi charging station reliably charges two electric cars or plug-in hybrids at the same time, which results in cost savings. The price of one double station is much lower than the purchase of two separate wallboxes.
Because the wallbox provides twice the power of 22 kW, charging will be just as fast, whether it is charging one or two cars. In addition, the MyBox Profi charging station enables connection with other stations, thereby up to 12 charging points can be created.
Most MyBox charging stations have a charging power of up to 22 kW. Currently, the majority of all EVs uses 11 kW when charging. Therefore, this station is also ready for the future, when electric cars will use the high power of AC charging stations.
Specifications:
• Max. input current: 3 × 64 A
• Max. output power: 44 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (3P+N+PE)
• Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5 to 95 % non-condensing
• Dimensions: 390 x 630 x 180 mm
• Weight: 25 kg
Technical parameters can be found in the datasheet attached.
