Key features:
• Czech produc
• RFID authorization
• Configuration via mobile application (Bluetooth, LAN/WiFi)
• Charging function from PV overflows with additional solar module
• Communicates with photovoltaic inverters
• Ideal for use in corporate or public parking lots

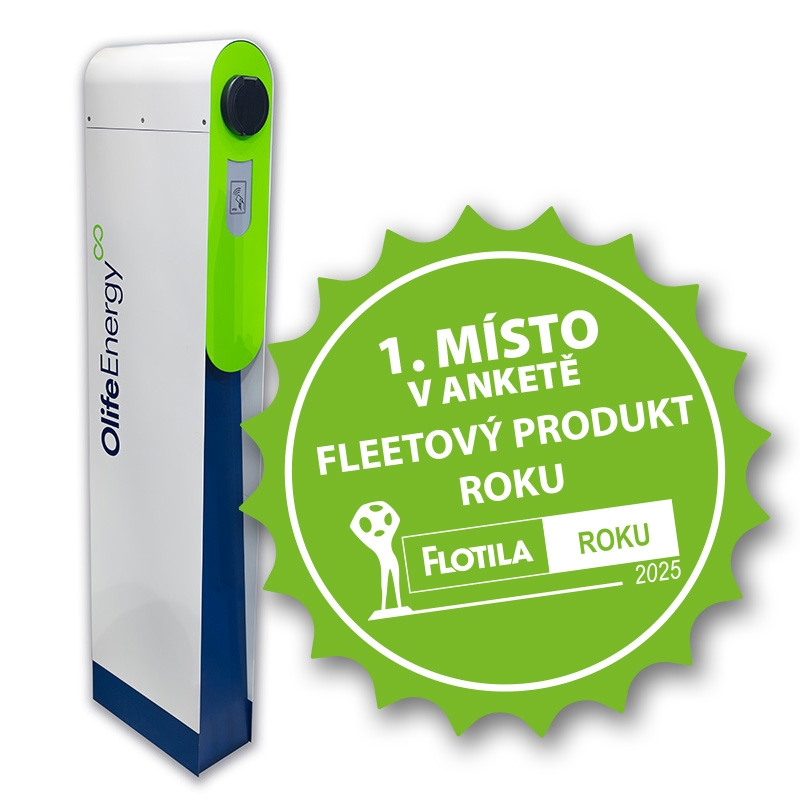

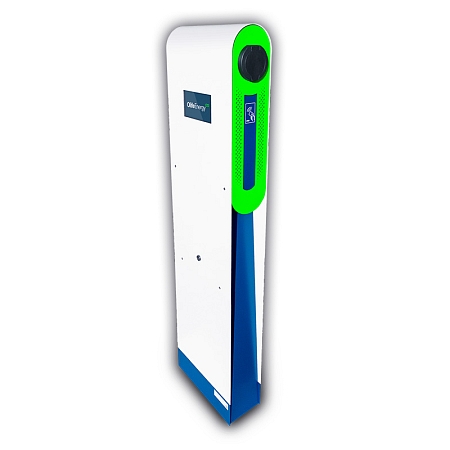

This all-metal AC charging station is a robust and durable version with the same advanced features as the OlifeEnergy DoubleBox SOLAR. It is designed as a standalone station that can be anchored to the ground. With an IP54 rating, it is resistant and suitable for outdoor use. The all-metal construction provides maximum resistance to weather conditions and vandalism. It is ideal for commercial or public spaces, such as corporate or public parking lots, where high durability and reliability are required. Its design allows for easy installation and maintenance, while the advanced features ensure efficient and safe electric vehicle charging.
The Olife Energy AC LITE SOLAR charging station is a Czech product designed for charging all types of electric vehicles on the EU market with alternating current. It allows you to charge an electric vehicle from your photovoltaic power plant (PVE) and can charge two electric vehicles simultaneously, each with a charging power of up to 22 kW.
To shorten the charging time, the station can divide the power input between the two charged vehicles according to their needs. The input power cable must be preceded by a type A residual current device, with a min. nominal rated current of 40 A.
The station includes a 7'color touch screen that displays key information about charging and allows easy control.
The electric vehicle charging station is equipped with two sockets. Cables are not included and can be purchased in our e-shop under the category Charging Cables.
Charging from FVE overflows
AC LITE SOLAR communicates with selected PV inverters (GoodWe (ET series), SOLAX, Dražice, Huawei (SUN2000), SOFAR) for domestic photovoltaic power plants (PV) without the need to purchase an OlifeEnergy SmartMeter for main circuit breaker protection.
The solar module communicates with the photovoltaic inverter via Wi-Fi or Ethernet protocol ModBus TCP over a local network (LAN). In addition, it mediates remote administration and setting of the station over the local network. The cooperation with the inverter allows the station to control the charging of the electric car in such a way as to achieve the highest possible charging speed with the maximum efficiency of the produced solar energy for charging the car from excess PV.
Specification AC LITE SOLAR:
• Output type: 2 x Type 2
• Output power: 0-44 kW
• Control: local automatic switching or via RFID card (RFID chip), Bluetooth, LAN/WiFi, Modbus RTU (via RS-485), ADC 0–10 V
• Overcurrent protection: 2 x 3-pole circuit breaker 32 A
• Residual protection: 2 x 4-pole type A protector + residual DC current detection according to IEC 62955
• Max. output current: 30-63 A
• Input voltage: 3 x 400 V
• IP protection: IP54
• Operating temperature: from -25 °C to 40 °C
• Operating humidity: from 5% to 95%
• Weight: 65 kg
• Dimensions: 385 x 1350 x 145 mm
Technical parameters can be found in the attached datasheet.
