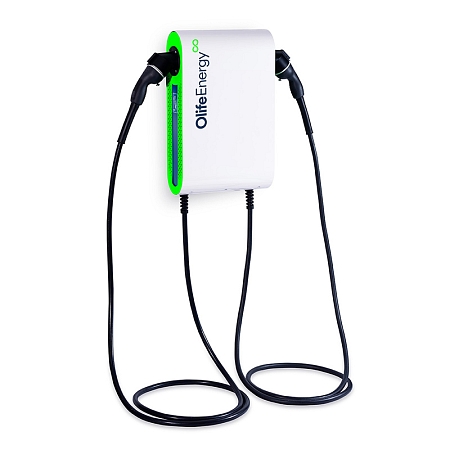

Olife Energy DoubleBox AC 22kW - SMART - 2 cables Type 2, 5m

Product code: EL-DB22-SMART-C
EAN: 8594206030104
Producer: Olife Energy

Olife Energy DoubleBox AC 22kW - SMART - 2 cables Type 2, 5m

OlifeEnergy Double Box SMART is an AC charging station with two cables Type 2, which is designed for charging all types of electric cars on the EU market.

2 630.43incl. VAT (21%) / pc

excl. VAT 2 173.91 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Olife Energy DoubleBox AC 22kW - SMART - two cables Type 2, length 5 m

Key features:

• Czech product
• Ideal charging station for use in businesses
RFID authorization
• OlifeEnergy AC Cloud services (remote monitoring, management, control and charging of charging stations)
• DoubleBox configuration via mobile application (local Bluetooth)
• Dynamic control of the station's performance using the OlifeEnergy SmartMeter unit

OlifeEnergy DoubleBox SMART is an AC charging station with two cables Type 2, which is designed for charging all types of electric cars on the EU market with alternating current. It charges up to 22 kW. It can charge two electric cars at the same time, each with an input of up to 22 kW. To shorten the charging time, the station can divide the power input between two charged vehicles according to their needs.
Thanks to the degree of protection IP54, it is durable and suitable for outdoor use and installation in indoor spaces such as garages. It can be mounted on a wall or on a profile that is anchored to the ground (mount field).

This DoubleBox is equipped with two socket and with two cables Type 2 (Mennekes), which is 5 m long. Cable length 5 m. At the customer's request, the station can be delivered with a longer cable for an individual surcharge.

Durable DoubleBox - SMART has extended functionality. Unlike the BASE model, the station supports the OlifeEnergy Cloud service and the OCPP protocol. It also provides remote communication (LAN, GSM), station diagnostics, power control of multiple stations, charging monitoring and control using RFID chips and the OlifeEnergy mobile application. The advanced SMART variant provides interoperability with a remote server (OlifeEnergyCloud, OCPP), which also offers power management for multiple OlifeEnergy chargers. The remote server enables user authorization and management, diagnostics, and priority performance control. If necessary, each SMART DoubleBox can be included in the network of OlifeEnergyNet charging stations, and public charging of electric cars can be done for a charging fee. The station is equipped with protection against electric overload.

Charging control

The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter. SmartMeter is a device that ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the DoubleBox or its sub-circuit and evaluating the available power consumption for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.

The input power cable must be preceded by a Residual Current protective Device type A, with a max. rated current 40 A.

Servises OlifeEnergy Cloud

OlifeEnergy Cloud is a platform for remote monitoring, management and clients charging. User is provided with the access to information about his charging station and it’s setting through web interface. The platform offersmultiple services which can be combined. OlifeEnergy Cloud is supported only by SMART version of Olifechargers.

Remote monitoring

Basic service for remote communication with the charging station. The user is informed about status and energy
consumption including history data.Thanks to remote access the OlifeEnergy center can easily diagnose possible
problem, in most cases it is even possible to adjust the issue remotely. SIM card for GSM module is includedin the package.

Payment system

This service allows the OlifeEnergy charging station owner to define the fee for station operation. Cost of transaction
fee is added to each charging session price paid by charging station user.

Access control

This service allows management of users allowed to use the OlifeEnergy charging station. The charger can appear as a public
charging station in OlifeEnergy Net map of chargers, or it can be visible only to a certain group of users. A List of all
individual charging sessions (user, time and consumed energy) data is available for the charging station owner with this service.

Power control

A Load-Balancing service for advanced control of the charging station. If there is not enough power to charge the E.V., or
E.V. fleet, consumption of the charging station(s) can be controlled based on specific maximum withdraw limit (weak grid) or dynamically (based on maximum consumption of the building in a certain time frame). Overall the Power control service brings savings for reducing building main circuit breaker tariff or maximum reserved power payments, it also prevents possible penalties for overstepping maximum quarter-hour power withdraw limits.

Specification DoubleBox SMART:

• Output connector: 2 x Type 2
• Output power: 0-44 kW
• Control: local - automatic or RFID / remote – OlifeEnergy Cloud, OCPP
• Residual protection: residual DC current detection (IEC 62955)
• Max. input current: 0-63 A
• Communication: OlifeEnergy Cloud, OCPP 1.6/2.0
• Data connection: Ethernet, USB (GSM, Wi-Fi)
• Input voltage: 3 x 400 V
• IP rating: IP54
• Operating temperature: od -25 °C to 40 °C
• Operating humidity: od 5 % do 95 %
• Weight: 23,5 kg
• Cable length 5 m
• Dimensions: 529 × 550 × 140 mm

Included in the package:

• DoubleBox: 2 × socket, 2 × cable
• 2 × chip
• 1 × bushing
• 4 × sealing washer
• 6 × screw
• 1 × instruction

OlifeEnergy DoubleBox is offered in BASE and SMART variants. The comparison of both variants is in the table below.


Technical parameters can be found in the attached datasheet.
