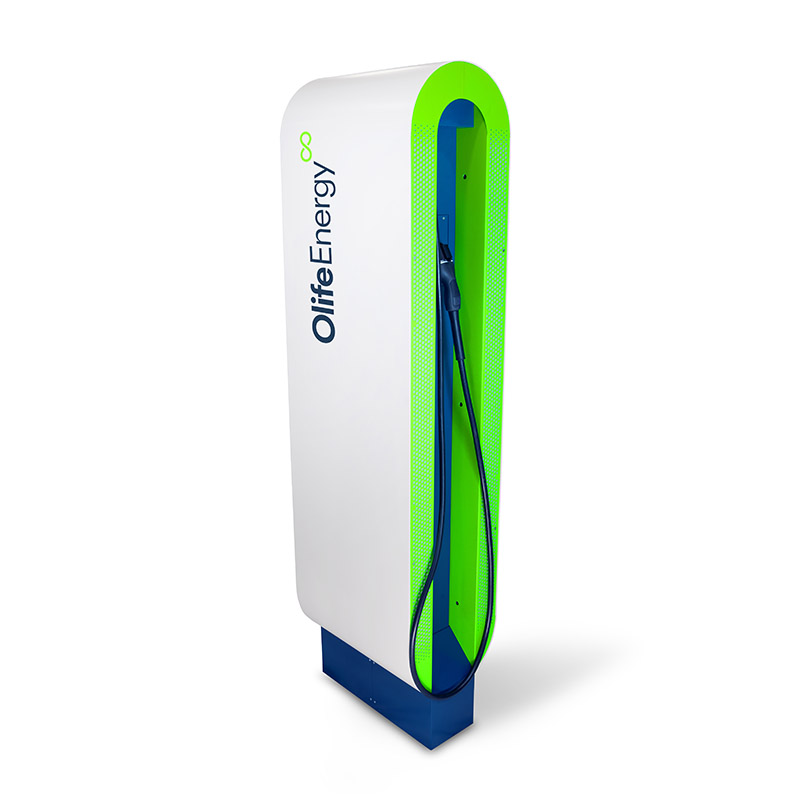

Olife Energy DC 80 kW Charging Station
Powerful DC Charging up to 80 kW
The DC fast charging station for electric vehicles charges with a power of up to 80 kW. When a second vehicle is connected, the station's power is evenly distributed between the connected vehicles (2x40 kW). After one of the vehicles finishes charging, the full charging power becomes available again for the other one. The charging station is directly connected to the electric vehicle's traction battery and controls the entire charging process. The power electronics are located inside the station.
Robust Construction for Outdoor Use
The Olife Energy DC 80 kW Charging Station has an IP54 protection rating and is designed for outdoor use. It is available as a free-standing unit. This station is equipped with two 5-meter cables with CCS2 connectors.
Dual Charging and User Authorization
In Dual working mode, it can fast-charge two electric vehicles simultaneously. It includes an RFID card reader for user authorization and LED status indicators.
Remote control and monitoring
The station is fully compatible with the Olife Energy Cloud service for remote monitoring, control, station management, and power regulation. It can also be controlled using RFID cards or a mobile application, or via the OCPP protocol. You can thus control the power of all charging stations remotely.
The fast DC charging station is suitable for operation in company parking lots, gas stations, shopping centers, and areas with high electric vehicle penetration.
Specifications of the 80 kW DC charging station:
• Operating mode: single / dual
• Design: outdoor IP54 - freestanding stand
• EV connection: cable with plug (IEC 62196-3)
• Charging mode: 4 according to IEC 61851-1, type C
• DC output: CCS2 (ISO 15118, DIN 70121)
• Control: local - car, display (7, color, touch), RFID, mob. applications / remote – OlifeEnergy Cloud, OCPP
• Output voltage (max.): 150–1000 VDC
• Charging cable length: 5 m
• Communication: OlifeEnergy Cloud, OCPP-J, 1.6, 2.0
• Data connection: Ethernet, USB (GSM, Wi-Fi)
• Operating temperature: from -25 °C to +40 °C
• Humidity: from 5% to 95%
• Dimensions: 2049 x 695 x 400 mm
• Weight: 250 kg
SECTRON is a certified holder of professional qualification for the installation of electric vehicle charging stations.
The functionality of the charging station can be expanded at the customer's request with these hardware components:
OlifeEnergy Cloud
OlifeEnergy Cloud is a platform for remote monitoring, management, control, and billing of electric vehicle charging stations and charging records.
The platform offers several service packages that can be combined. Charging stations with functionality expanded to include connection to the OlifeEnergy Cloud service and OCPP server. Through OlifeEnergy Cloud, you can dynamically control the power of multiple stations and cooperate with existing building management systems.
Remote Monitoring
A basic service that allows remote communication with the station. The owner has an overview of the station's status, current and total energy output, and can publish the station in the OlifeEnergy Net network for free charging.
Access Management
Designed for managing user access to the charging station using RFID chips or a mobile application. The package also includes a list of individual charging sessions (user, time, and amount of energy).
Power Management
A service for priority power management (load-balancing) of charging stations allows connecting multiple stations to a limited circuit breaker and prevents exceeding the agreed quarter-hour maximum power demand when connected to MV or HV.
Dual Mode
An optional feature for fast-charging two electric vehicles simultaneously. A second fast-charging output (CCS2 connector) is added to the station. If a single vehicle is connected to either of the charging cables, it is charged at full power. When a second vehicle is connected, the station's power is divided equally between the connected vehicles. After one vehicle finishes charging, the full charging power becomes available for the other vehicle again.
Technical parameters can be found in the attached datasheet.
