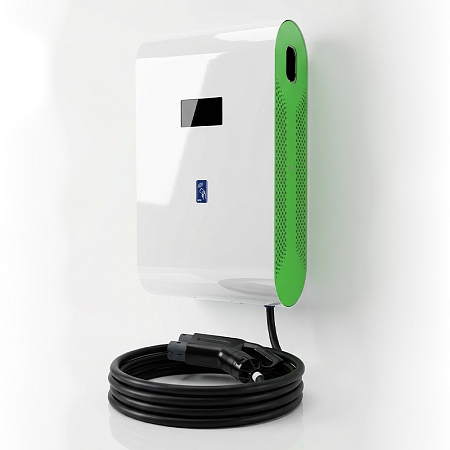

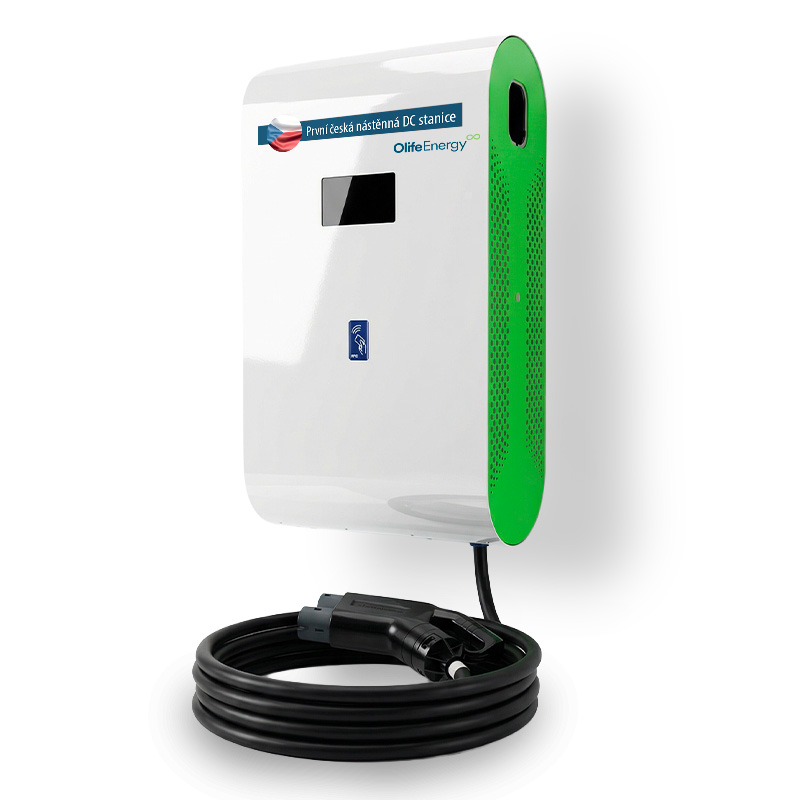

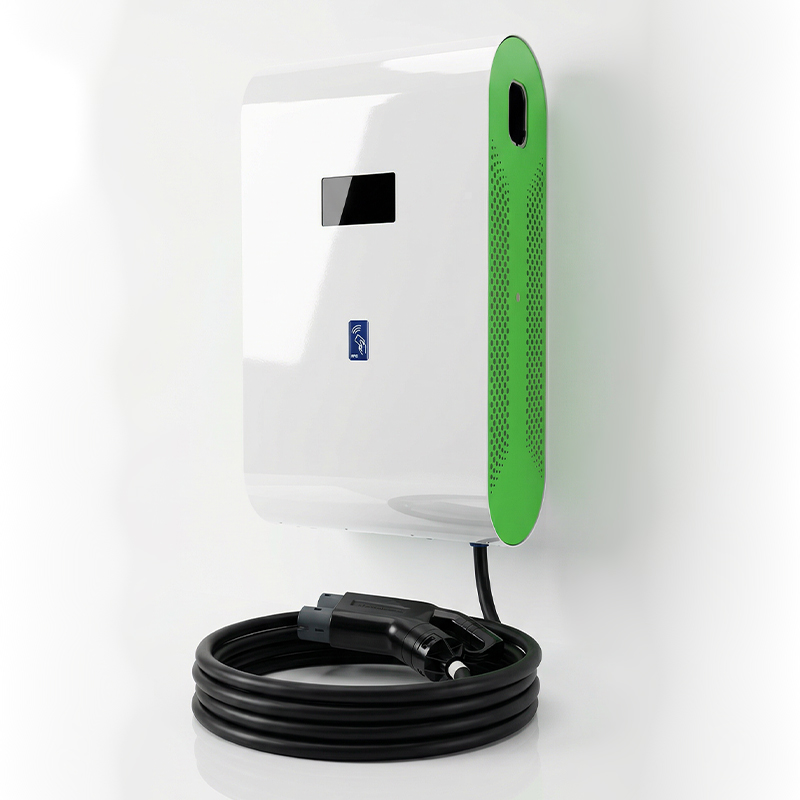

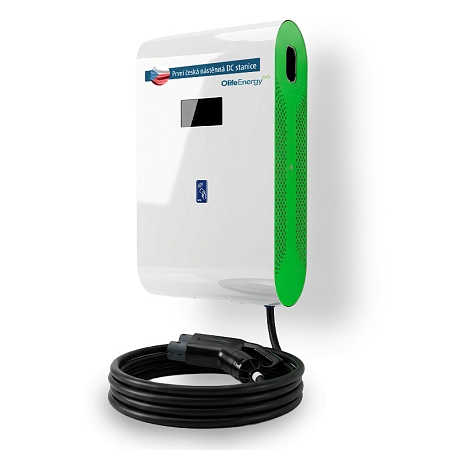

Olife Energy DC Wallbox 40 kW Fast Charging Station – SMART Version with 7' LCD
The Olife Energy DC Wallbox 40 kW is a compact, high-performance rapid charging solution that combines a robust design, advanced smart features, and intuitive operation for businesses, gas stations, and public parking lots.
Smart Features and OCPP Remote Management
This device is equipped with extended SMART functionality, enabling full integration with the OlifeEnergy Cloud remote management system and any OCPP server. This provides instant access to detailed diagnostics, charging logs, and advanced user management. The model is fully prepared for public operation and billing. Within a network, it also supports dynamic load management (DLM) for multiple units and integration into existing building management systems (BMS/MaR).
Durable Design for Heavy-Duty Use
The all-metal chassis with an IP54 rating (dust and splash resistance) and IK10 mechanical impact protection ensures a long service life, even in harsh outdoor environments and under intensive use. The DC charger features a 7' display for easy control and energy monitoring, and includes a 5-meter CCS2 cable (Combined Charging System).
Installation Services
SECTRON is a certified professional qualification holder for the installation of electric vehicle charging stations.
DC Wallbox 40 kW Specifications:
• Operating Mode: Single
• Design: Outdoor IP54 – Freestanding pedestal
• EV Connection: Cable with plug (IEC 62196-3)
• Charging Mode: Mode 4 according to IEC 61851-1, type C
• DC Output: CCS2
• Output Voltage: 150–1000 VDC
• Max. Output Current: 125 ADC
• Max. Power (Constant): 40 kW
• Control: Local (automatic start, RFID) / Remote (OlifeEnergy Cloud via RFID or mobile app) / OCPP 1.6 (2.0.1)
• Noise Level: < 65 dBA
• Charging Cable Length: 5 m
• Communication: Modbus TCP, OlifeEnergy Cloud, OCPP 1.6 (2.0.1)
• Data Connectivity: Ethernet, USB (GSM, Wi-Fi)
• Operating Temperature: -25 °C to +40 °C
• Operating Humidity: 5% to 95%
• Weight: 180 kg
Technical parameters can be found in the attached datasheet.
