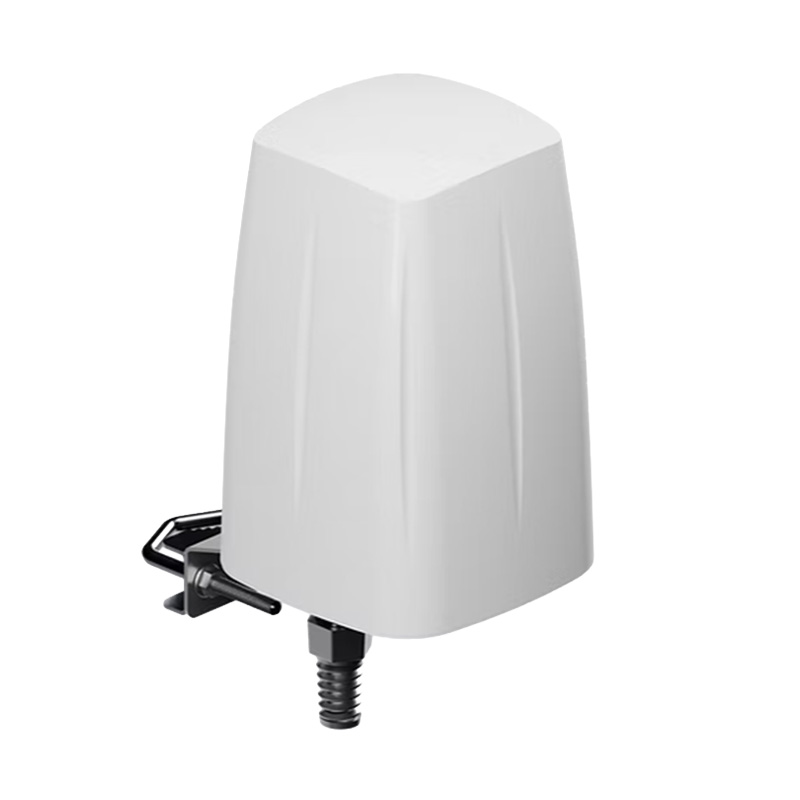

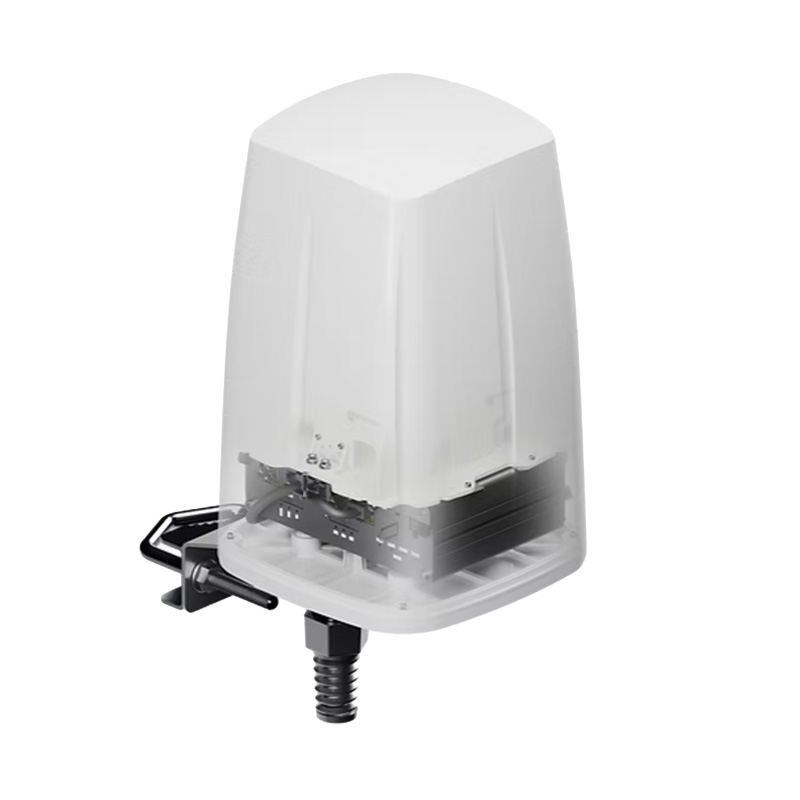

Teltonika PR1ICA70 Outdoor Combo Antenna
The Teltonika PR1ICA70 outdoor combo antenna is designed for direct use with Teltonika RUTX50, RUTM50, and RUTM51 5G routers.
This rugged omnidirectional (360°) antenna integrates technologies for 5G/LTE mobile signal reception, dual-band Wi-Fi, and precise satellite navigation (GPS/GNSS), all in a single compact housing. Support for a wide frequency band (617–4300 MHz) with 4x4 MIMO technology guarantees maximum throughput and stability for the 5G mobile network.
The antenna features an IP67 rating, making it fully dustproof and waterproof. It operates reliably in extreme temperatures ranging from -40 °C to +75 °C. An integrated mounting bracket allows for quick and flexible installation on a wall, ceiling, or pole.
Suitable Applications
- Industrial Automation and IoT: Stable data collection from remote sensors and production lines.
- Transport and Logistics: Ideal for installation on vehicles, trains, or heavy machinery, where combined reception of mobile signal, local Wi-Fi, and precise GPS tracking is crucial.
- Backup Connectivity: Extending the signal from the outdoor environment into metal enclosures or buildings with thick walls, where RUTX50/RUTM50 routers lack sufficient indoor signal.
Technical Specifications
1. Mobile Antenna (5G / LTE)
- Frequency range: 617 ~ 960 MHz, 1700 ~ 2700 MHz, 3300 ~ 4300 MHz
- Gain: Max. 4.5 dBi
- Polarization: Vertical
- Directivity: Omnidirectional
- VSWR: < 2.50
- Connectors: 4× SMA male
2. Wi-Fi Antenna
- Frequency range: 2400 ~ 2500 MHz, 4700 ~ 6000 MHz (Dual-Band)
- Gain: Max. 7.5 dBi
- Polarization: Vertical
- VSWR: < 2.00
- Connectors: 2× RP-SMA male
3. GNSS / GPS Antenna
- Frequency range: 1560 ~ 1610 MHz (GPS, GLONASS, BeiDou, Galileo)
- Gain: 28 dBi (active gain)
- Polarization: RHCP
- VSWR: < 2.00
- Connector: 1× SMA male
The installation manual can be found in the downloadable documents.
