Catalogue of Antennas
Product code: GP-PTPNTP-GMC-AK
Producer: Protempis
Product code: 102011-90

Protempis GMC Antenna Kit (102011-90)

Protempis GMC Antenna Kit (102011-90)
Product code: GP-PTPNTP-GMC-AK
Producer: Protempis
Product code: 102011-90

Protempis GMC Antenna Kit (102011-90)

Antenna Kit includes Bullet 360 antenna, 22,5 meters cables from antenna to surge protector, surge protector and 3,5 meter cable from surge protector to Protempis Thunderbolt® PTP Grandmaster Clock

660.06 € incl. VAT (21%) / pc

excl. VAT 545.50 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Protempis GMC Antenna Kit

Antenna Kit includes Bullet 360 antenna, 22,5 meters cables from antenna to surge protector, surge protector and 3,5 meter cable from surge protector to Protempis Thunderbolt® PTP Grandmaster Clock

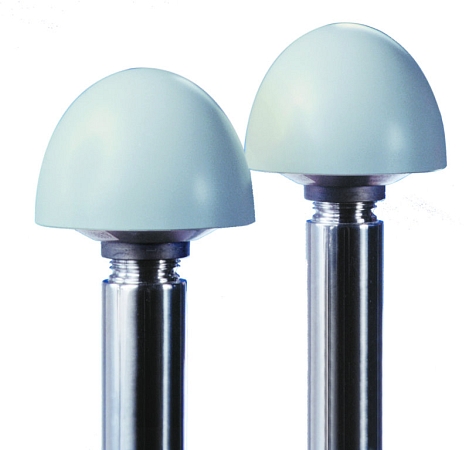

Protempis Bullet 360 antenna

Protempis Bullet 360 durable is antenna designed for in GPS and Beidou technologies, waterproof, corrosion resistant, wide temperature resistant to excessive vibration and shock. It is equipped with a TNC connector. The antenna reaches up to 26 dBi gain when combined with an amplifier. Well suited for a congested urban area.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Power voltage 3.3 - 5 V DC
Polarization Linear Execuion External
Operating temperature -40 ~ +90  °C Dimensions 77.5 x 66.2  mm
Directivity Directional Weight 200  g
Gain 26  dBi VSWR <2.0
Type of attachment Screw Mount Certification RoHS
Ingress protection (IP) IP67

660.06 € incl. VAT (21%) / pc

excl. VAT 545.50 € / pc
