Protempis ICM SMT 360 Starter KIT
Protempis timing module ICM SMT 360 for working in the most demanding low signal environments, including femtocells and in-building systems.
Module accepts aiding data for environments requiring the highest levels of enhanced sensitivity.
Key Features:
• Multi-Constellation
• Simultaneous GPS / GLONASS or GPS / Beidou tracking
• Ideal for populated urban and indoor environments with limited sky-view
• Holdover: ±7us over 5 minute period (min. 1 hour learning) 100ppb over 24 hours
• PPS, PP2S and 10MHz output (custom frequencies available)
• Extended temperature range (-40°C / +85°C)

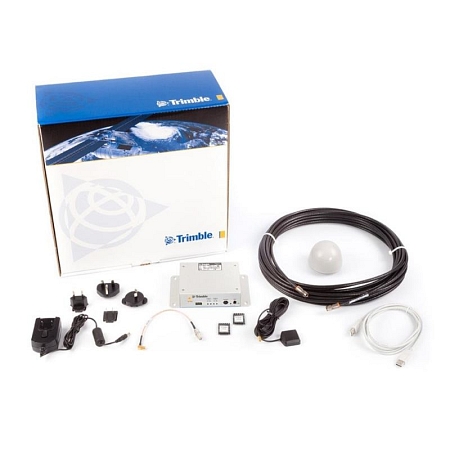

Starter Kit includes:
ICM SMT 360 Module mounted on interface board in metal Enclosure
35 dB, 5.0 VDC Bullet 360 Rooftop GNSS Antenna
Mini-mag Antenna (5V, SMB)
50 foot R59 Antenna Cable terminated with F connectors
USB interface Cable.
AC/DC Power Supply Adapter
SMB to F Adapter Cable.
Quick start guide
More information can be found in the attached datasheet.
