RF cable adaptor U.FL (f) to N (f), LP-088, cable length 10 cm

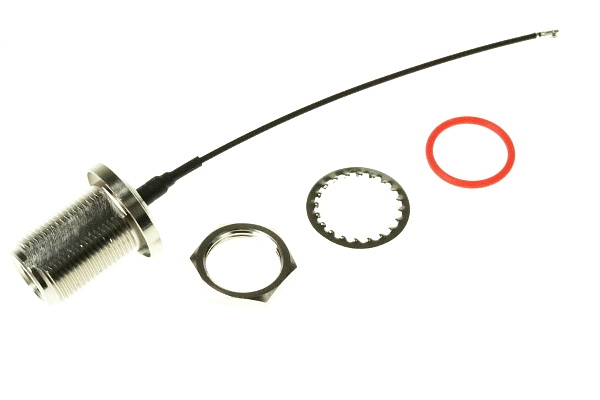

Adaptor (pigtail) - U.FL (f) to N (f) with LP-088 series cable, 10 cm cable length and 1.37 mm diameter.
Cable adaptors (pigtails) then serve as an extension for connecting 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.
Parameters:
• Cable type LP-088: diameter 1.37 mm
• Cable length: 10 cm
• Connector A: U.FL (f)
• Connector B: N (f)
• Certification: RoHS
Connector A - Connector U.FL
Use:
U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.
Benefits:
• High reliability due to precise manufacturing
• Low insertion loss
• Low VSWR
• Miniature dimensions
Parameters:
• Frequency range: Up to 6 GHz
• Impedance 50 ± 2 Ohm
• 500 Ohm insulation resistance
• MAX. VSWR <1.35: 1 (0-6GHz)
• Nominal attenuation 5.4 dB / m (3 GHz) / 8 dB / m (6 GHz)
• Guaranteed number of connections 30 cycles
• Maximum operating voltage 200 V AC / 1 min
• Operating temperature -40 ° C to +90 ° C
Connector B - Connector N
Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Parameters:
• Frequency range: Up to 11 GHz
• Impedance: 50 Ohm
• Temperature range is -65 °C to +165 °C
Coaxial cable LP 088
Cable features:
The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC/ N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.
The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
More information can be found in the attached datasheet.
