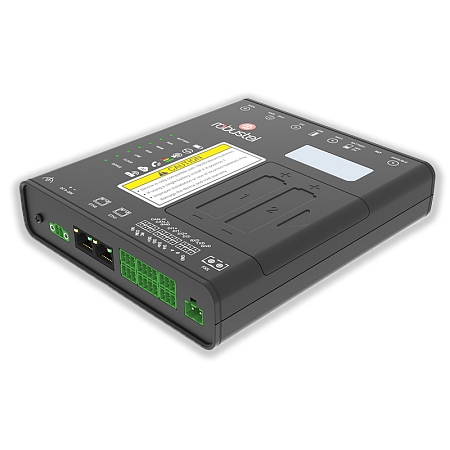

Robustel EV8100-B elevator voice gateway
The Robustel EV8100-B is an advanced gateway designed for elevators. It connects several devices such as a cellular router with WiFi support, as well as a phone with voice transmission using VoIP and VoLTE. Thanks to its RS232 and RS485 interfaces and the CAN bus, it enables seamless communication between the cellular network and the elevator intercom system. This next-generation device offers advanced interfaces and enables remote monitoring and management of the elevator communication system, facilitating fast and efficient resolution of any problems or malfunctions. It supports Wi-Fi 802.11ac and Bluetooth 5.2. The integrated battery serves as a backup source for about 2 hours in the event of a power outage.
The reliable EV8100 voice gateway acts as a connecting device between a regular telephone line (FXS) and a modern 4G LTE network. Using an existing FXS phone line, the EV8100 connects to a 4G network, eliminating the need for dedicated PSTN lines. This improves communication and reduces phone line maintenance costs.
With its advanced features and robust design, the EV8100 4G VoIP/VoLTE is a reliable and essential security solution for every modern building.
The Gateway EV8100-B, like all Robustel devices, includes RobustOS, an operating system developed on Linux, which facilitates the implementation and development of your applications.
The EV8100-B voice gateway can be connected to the RCMS service, which enables remote management, monitoring and diagnostics of network devices and thereby minimizes operating costs.
You can read more about the Robustel EV8100-B elevator communicator here.
Key Features:
• Support VoIP and VoLTE
• Backup battery inside, comply with EN 81-28 and AS1735 standards
• Highly stable 4G/3G/2G cellular connectivity with global band coverage
• High performance compute engine with 8 GB eMMCFlash for running complex customer applications
• Docker containerization supported
• 1 x RS232, 1 x RS485 +1 x CAN for connection to industrial/legacy devices
• 4 x DI & 1 x Relay for simple monitoring and control
• Dual SIM card slots for redundant communications
• 802.11ac Wi-Fi (optional) supporting AP and Cient modes
• Bluetooth (optional), Bluetooth 5.2 compliant
• Support Software Docker
• Supports C, C++, Java, Python, Node.js etc.
• Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ more VPN options
• Supports RCMS- Robustel’s router/gateway management platform for effective management of large estates of devices
Package contains:
• Gateway Robustel EV8100
• Mounting bracket
• 1× 2-pin connector
• 1× 2-pin connector (5.08 mm)
• 1x 3 x 2 pin connector
• 1x 4 x 2 pin connector
Technical parameters can be found in the attached datasheet.
