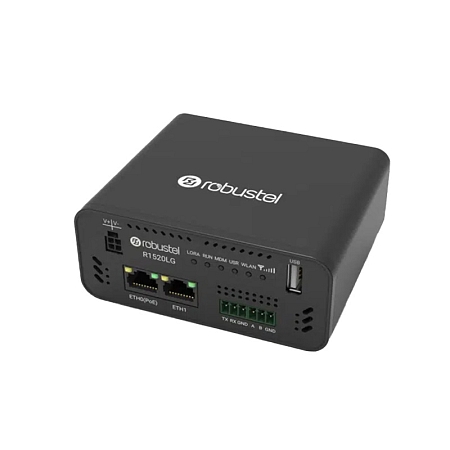

Robustel Gateway R1520LG
The Robustel R1520LG is a new LoRaWAN gateway that operates at a frequency of 868 MHz and supports 2G, 3G, 4G LTE networks and WiFi. The LoRaWAN (Long Range Wide Area Network) wireless network is designed to transfer data between IoT (Internet of Things) devices and a central control system.It is an energy-efficient, long-range network that provides a wireless link that enables long-distance communication, even in difficult conditions such as urban areas. This LoRaWAN gateway is suitable for a wide range of applications, from industrial IoT environments to large-scale buildings and smart cities, wherever a large volume of data needs to be processed. The integrated Chirpstack LoRa network server enables the router to manage traffic effectively.
The Gateway R1520LG is equipped with a variety of interfaces, including 2x Ethernet, 1x RS232, 1x RS485 and USB 2.0, enabling connection to a wide range of devices. PoE-PD technology allows the router to receive power through an Ethernet cable, which is also used for data transmission. E2C Chirpstack software connector allows LoRa sensors to connect directly to AWS/Azure or other cloud platforms.
The Robustel R1520LG IoT gateway has the RobustOS operating system, which is based on Linux and designed for use in Robustel devices. Another advantage is the RCMS system (Robustel Cloud Manager Service), which enables remote management, monitoring and diagnostics of all Robustel brand devices. The Gateway supports a VPN network that enables a secure connection to the Internet and security of data transmission between the device and the target network.
The robust metal cover offers mounting options on a DIN rail and a wall.
You can read more in our article here.
Key Features:
• PoE-PD support
• WiFi client and AP support
• Ethernet ports 1× WAN 10/100 Mbps and 1× LAN 10/100 Mbps
• Support for 2G / 3G / 4G networks
• RS232 and RS485 interfaces
• DUAL SIM slot (2 Mini-SIM 2 FF)
• Protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc
• Management and maintenance via Web, CLI, SMS
• Supply voltage 9 to 60 V DC
• Dimensions: 105 × 90 × 46 mm mm
Package included:
• Gateway Robustel R1520LG
• 1× 3-pin connector
• 1× mounting bracket
Power supply, antennas and Ethernet cable are not included in the package.
More information can be found in the attached datasheet.
