Industrial Wi-Fi/LTE router Robustel R1510
Robustel R1510 is a compact industrial LTE Cat 4 router designed for reliable IP connectivity in space-constrained IoT deployments. It provides high-speed wireless internet access by combining Ethernet, cellular technologies 2G/3G/4G, and 2.4 GHz Wi-Fi. Its key feature is failover functionality, which automatically switches to a backup connection in case of a primary link failure, ensuring maximum stability and uninterrupted data transmission. The device is technically intended for EMEA and SEA regions.
Ideal Solution for Space-Constrained Environments
With compact dimensions of 91.5 × 91.5 × 31.5 mm, the R1510 is one of the smallest industrial routers on the market, making it ideal for installation in confined spaces such as vending machines or small control cabinets.
Note: This standard industrial configuration is not suitable for direct use in automotive (vehicle) applications without additional software modifications.
Typical use cases
Thanks to its durability and advanced security features (VPN), the Robustel R1510 is used in the following sectors:
- Self-service systems: Connectivity for parcel lockers, parking meters, and payment terminals; LTE backup ensures continuous payment processing.
- Ticketing systems: Primary 4G/LTE connectivity with failover guarantees smooth transaction processing.
Operating System – RobustOS
The router runs on RobustOS, a modular Linux-based operating system designed specifically for industrial IoT applications. It supports the installation of additional applications (via SDK), allowing customization of router functionality to meet specific project requirements without changing the entire firmware.
Advanced VPN Security and RCMS Cloud Platform
The router offers a comprehensive set of VPN protocols, including IPsec, OpenVPN, GRE, and WireGuard, ensuring secure connectivity with corporate infrastructure. For efficient management of multiple devices, the Robustel Cloud Manager Service (RCMS) enables remote management, monitoring, and diagnostics, helping to reduce operational costs.
Product Video
The product video provides an overview of the Robustel R1510 router features and showcases practical use cases.
Key Features:
- Network support: 2G, 3G, 4G

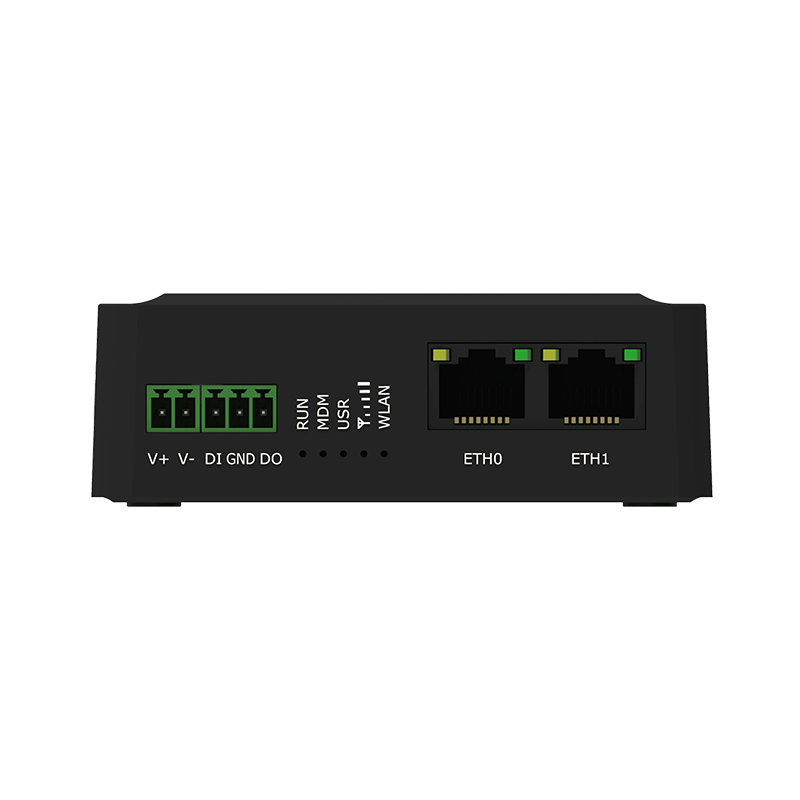

- Ethernet: 2 × 10/100 Mbps
- Link Manager supports Mobile WAN, Ethernet WAN, WLAN, WAN backup, and ICMP detection
- Software: Static, PPPoE, DHCP client
- Operating system: RobustOS
- VPN: IPsec, OpenVPN, GRE, WireGuard
- Management and maintenance via Web, CLI, SMS, RCMS Cloud
- Automatic reboot via SMS or scheduler
- Dimensions: 91. 91.5 × 31.5 mm

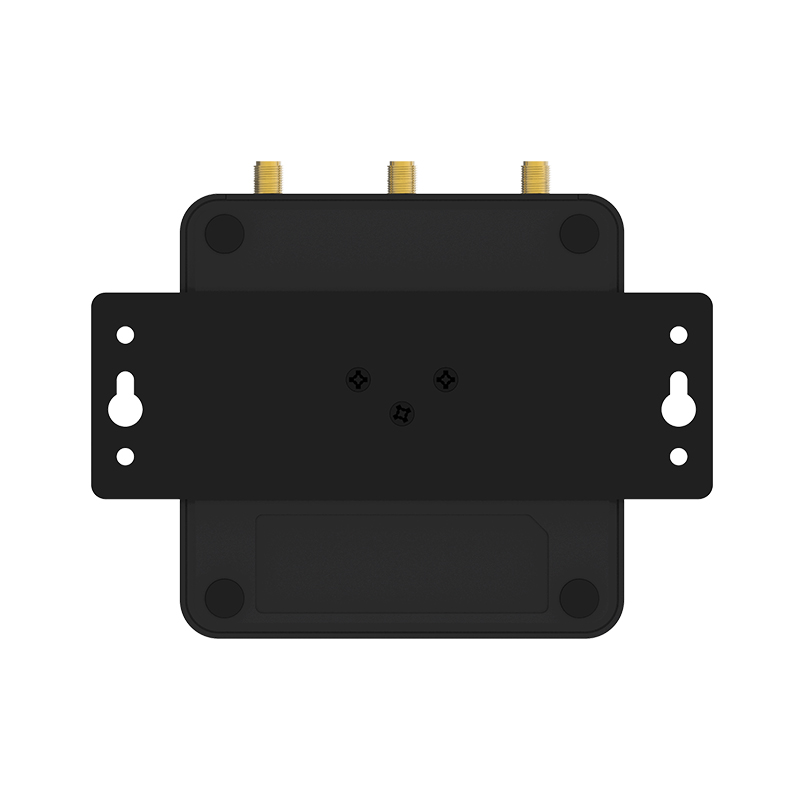

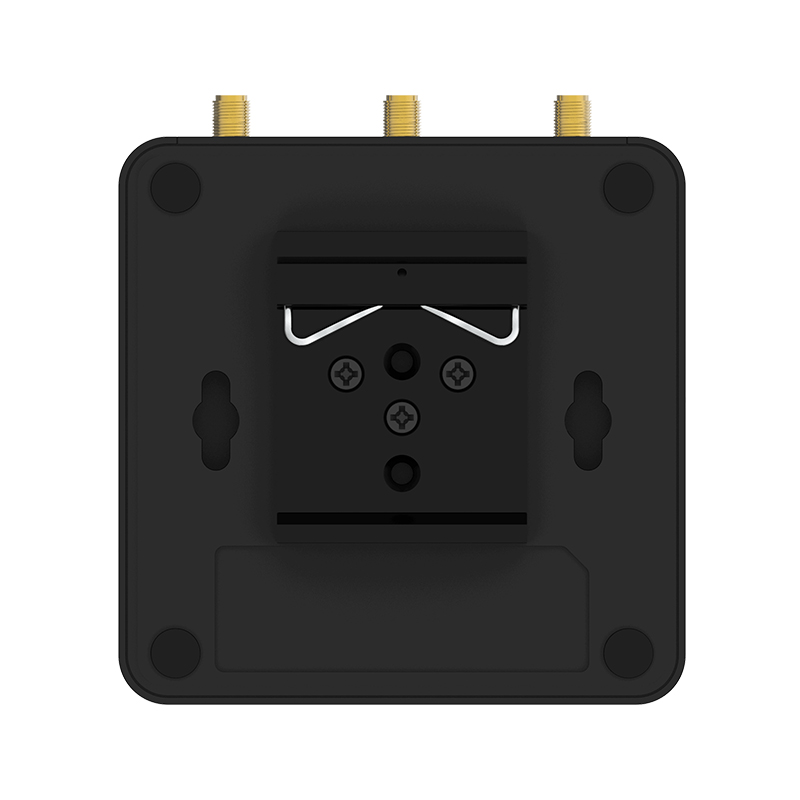

- Wall or DIN rail mounting
Ethernet cable and power supply are not included in the package.
SECTRON recommends the following accessories:
AM-RT-ETH150-CAT5E – Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5 m
AM-RT-FPOWR – Power supply 12V / 1A, cable length 1.4 m, without connector (open end)
More information can be found in the attached datasheet.
