Robustel EG5200-A5BAZ-5G-A25GL: Industrial 4G Edge Computing Gateway
The Robustel EG5200 is an industrial-grade edge computing gateway supporting global 4G/3G/2G networks. It features dual SIM slots with failover functionality, ensuring maximum stability and connection redundancy for mission-critical applications. Beyond cellular connectivity, the device EG5200-A5BAZ-5G-A25GL is equipped with integrated Wi-Fi and Bluetooth modules for local wireless communication.
This gateway, the Robustel EG5200, is a high-performance hybrid of a cellular router and an embedded computer, making it an ideal solution for various industrial sectors.
Typical Applications
- Industry 4.0 and Robotics: Real-time local data processing from PLCs and sensors.
- Smart Cities: Edge-based video analytics and traffic management systems.
- Energy & Utilities: Monitoring and predictive maintenance of distribution networks.
Operating System
The device runs on RobustOS Pro, an operating system based on the Debian 11 (Bullseye) Linux distribution. This platform provides full support for Docker containerization and native compatibility with thousands of ARMv8-based applications. This significantly simplifies the migration of solutions originally developed for Raspberry Pi.
Industrial Network Security
The EG5200 integrates advanced VPN protocols (including IPsec) for secure data transmission, Smart Roaming features to maintain cellular stability, and support for out-of-band management via SMS commands.
Centralized Management with RCMS
For maximum operational efficiency, the gateway is fully integrated with the Robustel Cloud Manager Service (RCMS). This platform enables:
- Real-time Monitoring: Tracking signal strength, data usage, and network status via an interactive geospatial dashboard.
- Remote Maintenance (OTA): Over-the-air updates for firmware, configurations, and applications, eliminating the need for on-site visits.
- Operational Optimization: Minimizing downtime and providing a centralized overview of your entire IoT ecosystem.
- The video contains an introduction and examples of using the Robustel EG5200 industrial gateway
The video contains an introduction and examples of using the Robustel EG5200 industrial gateway:
Key Features:
- Mobile connectivity: 4G/LTE Cat.4 with global coverage and Dual SIM redundancy
- Computing performance: Quad-core Cortex-A53 processor (1.6 GHz) + 32 GB eMMC
- Serial communication: 2× RS232/RS422/RS485 port for connecting legacy industrial machines
- Digital I/O: 2× DI and 2× relay output for direct control and monitoring
- Ethernet Port: 5× RJ45, 10/100/1000 Mbps
- Durable design: Metal housing with IP30 protection, DIN rail mounting, operating temperature -30 °C to +70 °C
Package Contents:
- 1× EG5200 Gateway

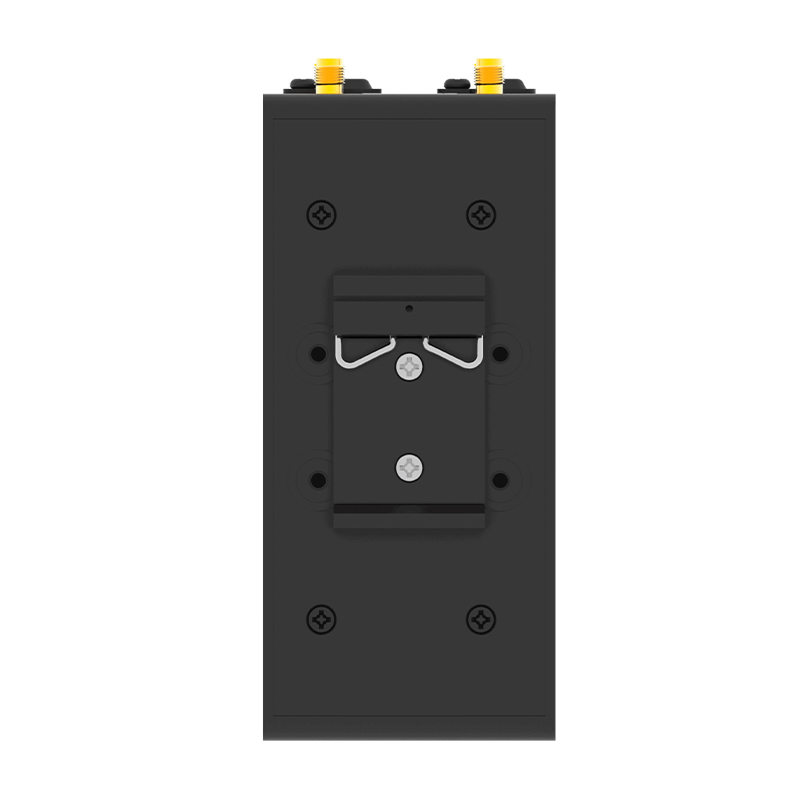

- 1× DIN-rail mounting bracket
More information can be found in the attached datasheet.
