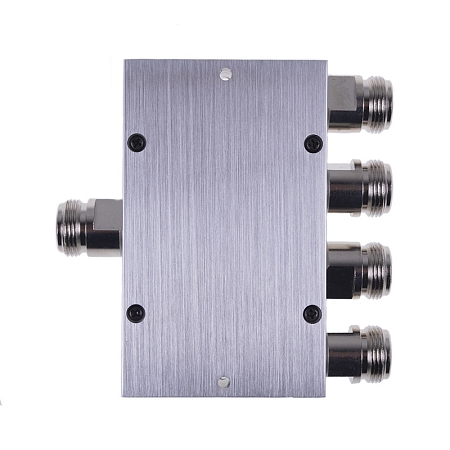

Antenna Splitter Coupler 800-2500MHz 4/1

Product code: XGSM-ROZBO4
Producer: SECTRON

Antenna Splitter Coupler 800-2500MHz 4/1

The broadband splitter with four outputs is equipped with four N (f) type connectors.

65.11incl. VAT (21%) / pc

excl. VAT 53.81 € / pc

Price from 10 pieces 43.05 €

Price from 100 pieces 38.71 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Splitter Coupler (800-2500 MHz) with 4 outputs

The broadband splitter with four outputs is equipped with four N (f) type connectors. Suitable for branching from one coaxial branch into four coaxial branches and thus allowing the connection of multiple devices.

Thanks to its robust construction and the use of N(f) type connectors, the antenna splitter is also suitable for professional applications where minimal signal loss and high resistance to external influences are important.

Features:

• Frequency: 800 - 2500 MHz
VSWR: 1.35 : 1 (max)
Impedance: 50 Ohm
• Divider Factor: 1 : 4
• Divider Loss: 6 dB
• Temperature range: -40 °C až +90°C
• Dimensions: 29 × 11.4 × 11.6 mm
• Low Insertion Loss

Specifications connector N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Frequency range 800-2500  MHz

Documents to download

Other information

Producer name SECTRON s.r.o.
Producer address Josefa Šavla 12, Ostrava - Mariánské Hory 709 00, Czech Republic
Producer e-mail sales@sectron.cz
Producer phone +420 556 621 020
