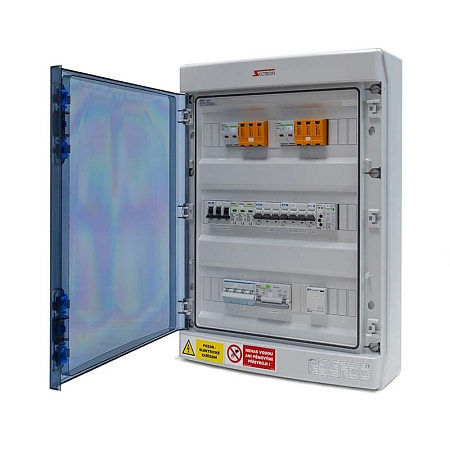

SECTRON Photovoltaic switchboard IKA
The SECTRON AC/DC switchboard is a ready-made solution for three-phase hybrid photovoltaic power plants. The modular on plaster wall-mounted vertical distribution board for indoor use, divided into three rows with a capacity of 54 modules, contains all the components needed for the installation of a photovoltaic power plant in your building.
The photovoltaic switchboard is equipped with components from the brands OEZ, Hager, Noark, Eaton and it is wired. The Photovoltaic switchboard contains a switch, circuit breakers, contactors, and a residual-current device. The PV switchboard has a rating of IP65, which ensures sufficient protection for the devices installed in the distribution board even in a more demanding environment. A prepared distribution board significantly reduces the time spent at the site of the installation of a PVs; the electrician does not have to lose time fitting the distribution board with all components and wiring it.
The switchboard for photovoltaics complies with relevant electrical and safety standards and ensures safe operation of the solar system.
Key features:
• Material: ABS (insulated material)
• Insulation voltage: 1,000 V AC / 1,500 V DC
• Resistance to surge voltage: 3.3 kV
• Impact strength: IK08
• IP code: IP65
• Configuration: 3 rows / 54 modules
• Grommets: Metric cable entries at the top and bottom, on the back plate
• Mechanical resistance: The requirements of the standard for the product are met
• Color: Gray (RAL 7035)
• Operating temperature: -25 °C ~ +40 °C
• Weight: 8,330 g
• Built-in depth: 70 mm
• Dimensions: 586 x 418 x 145 mm
More information can be found in the attached datasheet.
