Product code: GM-EHS5-E-R3-C300
Producer: Telit Cinterion
Product code: L30960-N2800-C300

Telit Cinterion EHS5-E Rel.3 MR

Product code: GM-EHS5-E-R3-C300
Producer: Telit Cinterion
Product code: L30960-N2800-C300

Telit Cinterion EHS5-E Rel.3 MR

Telit Cinterion EHS5-E Rel.3 MR is a high-performance, open-platform module powered by the JavaTM virtual machine.

26.02incl. VAT (21%) / pc

excl. VAT 21.50 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

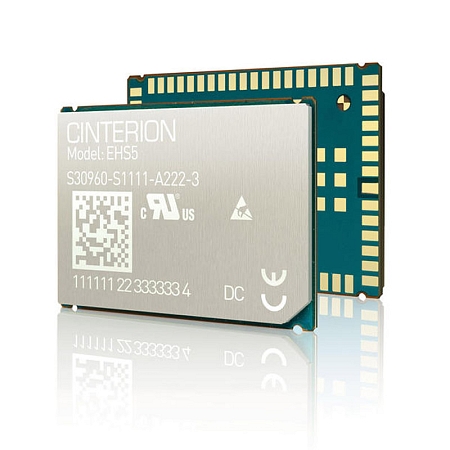

Telit Cinterion EHS5-E Rel.3 MR

The Cinterion EHS5-E Rel.3 MR is a high-performance, open-platform module powered by the JavaTM virtual machine. It combines the advantages of easy and reliable automated manufacturing with fast design and development of customer´s application. Cinterion EHS5 module delivers highly efficient 3G connectivity in an ultra-compact footprint featuring high-speed data communication with 7.2 Mbps (max) in the downlink and 5.76 Mbps (max).

Cinterion EHS5-E Rel.3 MR (900/2100 MHz) is available for Europe.

Features:

  Dual Band UMTS (WCDMA / FDD)
   EEC5-E: 900/2100 MHz
   EEC5-US: 850/1900 MHz
  Dual Band GSM
   EEC5-E: 900/1800 MHz
   EEC5-US: 850/1900 MHz
 HSDPA Cat.8 / HSUPA Cat.6, DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
  EDGE class 12, DL: maximum 237 kbps, UL: maximum 237 kbps
  GPRS class 12, DL: max. 85.6 kbps, UL: max. 85.6 kbps
  Control with standard and extended AT commands
  Supply voltage: 3.3 to 4.5V
  Operating temperature: -40 °C to +90 °C
  Dimensions: 18.8 x 27.6 x 2.2 mm
  Weight: 2.7g

Vacuum-packaged modules. Modules pack of 10/50/300 units. MOQ is 10 units.

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Technical parameters can be found in the attached datasheet.

Parameters

Dimensions 27.6 x 18.8 x 2.2  mm Power supply 3.1 - 4.5 V  V
Exension Java programmable UMTS band 900 MHz  MHz
Cinterion platform Industrial
