Product code: GM-ELS81-E
Producer: Telit Cinterion
Product code: L30960-N5450-A110

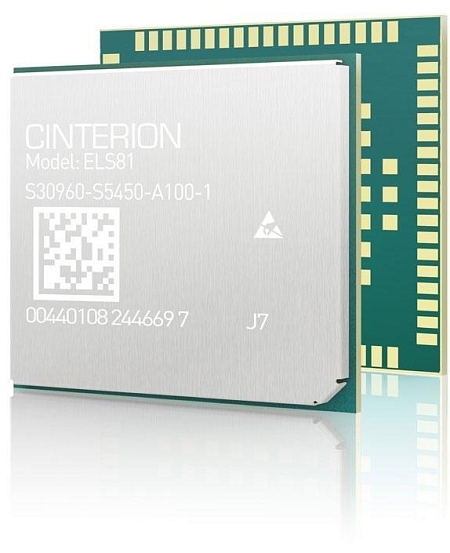

Telit Cinterion ELS81-E Rel. 1.1

Sale
Product code: GM-ELS81-E
Producer: Telit Cinterion
Product code: L30960-N5450-A110

Telit Cinterion ELS81-E Rel. 1.1

Cinterion ELS81 - Telit Cinterion (Thales Gemalto's) high-speed LTE module, supports data transmission on 4G Cat networks. It combines high-speed data transfer and high bandwidth. Supports seamless transition from 4G to 3G and 2G.

38.72incl. VAT (21%) / pc

excl. VAT 32.00 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Telit Cinterion ELS81- E

Cinterion ELS81 - Telit Cinterion's high-speed LTE module, supports data transmission on 4G Cat networks. It combines high-speed data transfer and high bandwidth. Supports seamless transition from 4G to 3G and 2G. Offers the ability to create your own JAVA applications on the module.

Module Cinterion ELS81- E is available for Europe.

Features:

• Region: NORAM, EMEA
• Reserved approval: AT & T
• LTE (FDD) 3GPP Rel. 9+
• LTE-bands:
             ELS81-US: 2, 4, 5, 12 (additional 3G backup) (700, 850, 1700/2100 (AWS) and 1900 MHz),
             Tri Band UMTS: 5, 4, 2 (WCDMA / FDD 850, 1700/2100 (AWS) and 1900MHz)
• Java ™ ME 3.2 integrated processing
• IP Services
• USB is a composite mode compatible with Windows, Linux, and Mac
• Full and incremental firmware update via USB and ASC
• Operating temperature range -40 ° C to + 85 ° C
• Dimensions: 27.6 x 25.4 x 2.2 mm

More information can be found in the attached datasheet.

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Parameters

Dimensions 27.6 x 25.4 x 2x2  mm Power supply 3.0 - 4.5 V  V
Exension Java programmable UMTS band 900 MHz  MHz
Cinterion platform Industrial

38.72incl. VAT (21%) / pc

excl. VAT 32.00 € / pc
