Product Cinterion EXS82-W Rel. 1.1 DevKit has EOL (End of Life) status. Last time order/buy.

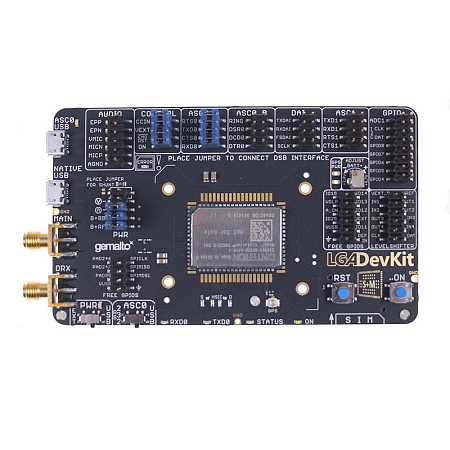

Telit Cinterion EXS82-W Rel. 1.1 DevKit
Telit Cinterion (Thales Gemalto) EXS82-W DevKit is an easily configurable development kit supplied with the Cinterion EXS82-W module. The EXS82-W wireless module ensures a highly efficient NB-IoT mobile connection.
For testing and development purposes, it is no longer necessary to purchase development kits separately for individual modules. DevKit EXS82-W can work independently without the need to connect any other tools or devices.
Specifications and benefits:
• Easy commissioning of the module without the need for additional components
• Supports DSB75 / DSB-Mini as a port expander
• UART via USB VCP
• Direct access to the complete interrupt module signal for in-depth testing
• Measurement of the actual current consumption of the module, without losses and interference
• Powered via USB or external device (eg DSB75 / DSB-Mini)
• Adjustable power level of the module level 3.1–4.2 V
• Other supported interfaces: ASC1, GPIO
• Easy concept for use and signaling
• QR code scanning allows the user to access all the information needed for use
Key features of the module:
• LTE Cat. M1, LTE Cat. NB1, LTE Cat. NB2
• Class 5 20 dBm
• Extended operation: 2.6 V to 4.8 V (output power limitation)
• 2 serial interfaces
• USB interface
• I2C and ADC interface
• SPI interface
More information can be found in the attached datasheet.
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
