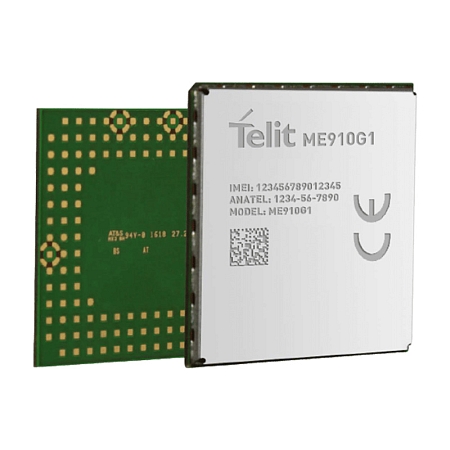

Telit Cinterion ME910G1-WW
This item can only be purchased in multiples of 180 pieces.
The Telit Cinterion ME910G1-WW is an LTE module compatible with 3GPP Rel. 14 Cat M1/NB2. It is ideal for efficient use in IoT applications with an emphasis on energy saving with a focus on low data throughput and increased coverage quality. The module is in LGA design and offers various configurations. It is equipped with special PSM and eDRX modes, which are designed to minimize power consumption and extend battery life.
The wireless module provides global coverage, which means that regardless of the region you are in, you will have access to LTE networks. Supports Cat M1/NB2 dual mode (NBIoT) and 2G backup.
Thanks to the IPv4/IPv6 stack function, the module supports the simultaneous use of IPv4 and IPv6 addresses, thereby achieving more efficient operation of a larger number of devices in one network.
The Telit Cinterion ME910G1-WW is a reliable choice for applications such as industrial sensors, smart meters, healthcare monitoring, fleet management, asset monitoring and many others that use low power consumption.
Key Features:
• Technology: Dual Mode LTE-M/NB-IoT
• 4G band support: B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85
• Support for 2G bands: B2, B3, B5, B8
• Interface support: USB 2.0 HS, UART, SPI, I2C
• 1× antenna
• Control using AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
• Certifications and Approvals: FCC/IC, RED, UKCA, GCF, PTCRB, ANATEL, Ifetel, RCM, JATE/TELEC, KC, CCC, SRRC, NCC, IMDA, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, TELSTRA, SKT, NTT DOCOMO, KDDI, Deutsche Telekom, Rogers, Spark
• Output power: LTE: 23 dBm (Power Class 3)
• Dimensions: 28.2 × 28.2 × 2.4 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
