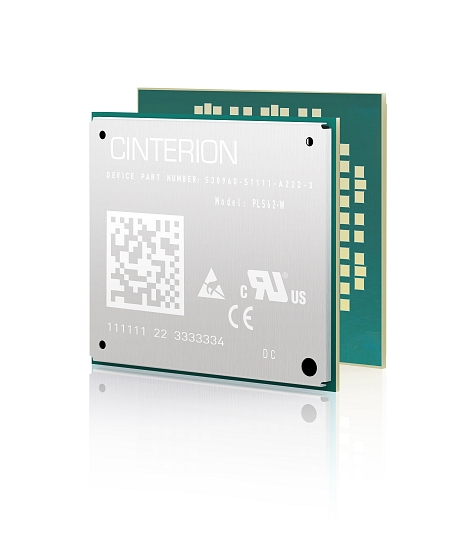

Telit Cinterion PLS62-W
Cinterion PLS62-W wireless module with the possibility of create your own JAVA application has a high-speed LTE connection and, if necessary, provides connectivity for 2G and 3G networks. It allows transmission speeds DL: max 10 Mbit / s and UL: max 5 Mbit / s, so it is ideal for industrial IoT and M2M applications such as remote monitoring, fleet management, smart metering and more.
This PLS62-W module is designed for use anywhere in the world.
GENERAL FEATURES:
• FDD LTE Cat 1DL: max. 10.2 Mbps, UL: max. 5.2 Mbps
• 3GPP Rel.9 Compliant Protocol Stack
• Twelve Bands FDD-LTE: 700, 800, 850, 900,
1700/2100 (AWS), 1800, 1900, 2100, 2600 MHz
(bands 1, 2, 3, 4, 5, 7, 8, 12, 18, 19,20, 28)
• Seven Bands UMTS (WCDMA/FDD): 800, 850, 900,
1700/2100 (AWS), 1800, 1900 and 2100 MHz (bands 1, 2, 4, 5, 8, 9, 19
• Quad Band GSM: 850, 900, 1800 and 1900 MHz
• SIM Application Toolkit, letter classes b, c, e with BIP and RunAT support
• Control via standardized and extended ATcommands (Hayes, TS 27.007 and 27.005)
Embedded IP stack with IPv4 and IPv6 support
• TCP/IP stack access via AT command and transparent TCP/UDP services
• Secure Connection with TLS
• Internet Services TCP/UDP server/client,DNS, Ping, HTTP, SMTP, FTP client
• LGA pad soldering mount, MSL4
• Supply voltage range: 3.0 - 4.5 V
• Dimension: 33 x 29 x 2.3 mm
• Operating temperature: -40°C to +90°C
• RoHS compliant
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the attached datasheet.
