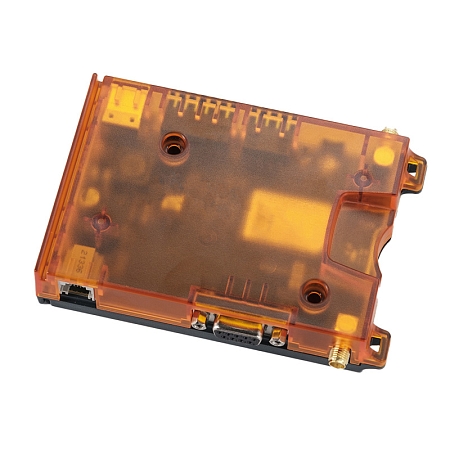

Gateway Telit Cinterion SGL81-W USB WiFi
Gateway Telit Cinterion SGL81-W USB WiFi is an IoT industrial gateway designed for use in a wide range of industrial applications that require reliable and secure connectivity. Gateway SGL81 enables Internet connection via LTE Cat.4 networks.
The Telit Cinterion SGL81-W gateway with integrated WiFi receiver supports USB interfaces and the possibility of development through the Cinterion SDK ThreadX. It has a driver for Windows 10/11 Linux distributions, an optional eSIM as well as an identity for easy registration in IoT public clouds.
Key features of the Telit Cinterion SGL81-W USB WiFi include robust housing and high resistance to operating conditions such as high temperatures -30 °C to +75 °C, vibration and dust, as well as support for various security features, including data encryption and protection against unauthorized access.
The plug-n-play SGL81 offers efficient LTE connectivity with data download speeds of up to 150 Mbps. The SGL81-W USB WiFi industrial gateway is ideal for remote maintenance and control of IoT devices, production process monitoring, agriculture and many other applications.
Key Features:
• LTE Cat.4
FDD-LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
TD-LTE Bands: 38, 40, 41
UMTS Bands (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19
Quad Band GSM bands: 50, 900, 1800, 1900 MHz
• Transmission speeds LTE Cat.4 DL: max. 150 Mbps, UL: max. 50 Mbps
• SIM Application Toolkit with BIP
• Control via standardized commands (Hayes, TS 27.007 and 27.005) and Thales AT commands
• Embedded IPv4 and IPv6 TCP/IP stack access via AT command and transparent TCP/UDP services
• Internet services: TCP server/client, UDP client, DNS, SMTP, Ping, HTTP client, FTP client, MQTT client
• Secure connection with TLS/DTLS
• Integrated WiFi receiver
• Supply voltage range: 8 - 57 V
• IoT suite incremental firmware update over the air
• Dimensions: 113.8 × 75.3 × 25.3 mm (without connectors)
• Operating temperature: -30 °C to +75 °C
• Weight: 130 g
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
