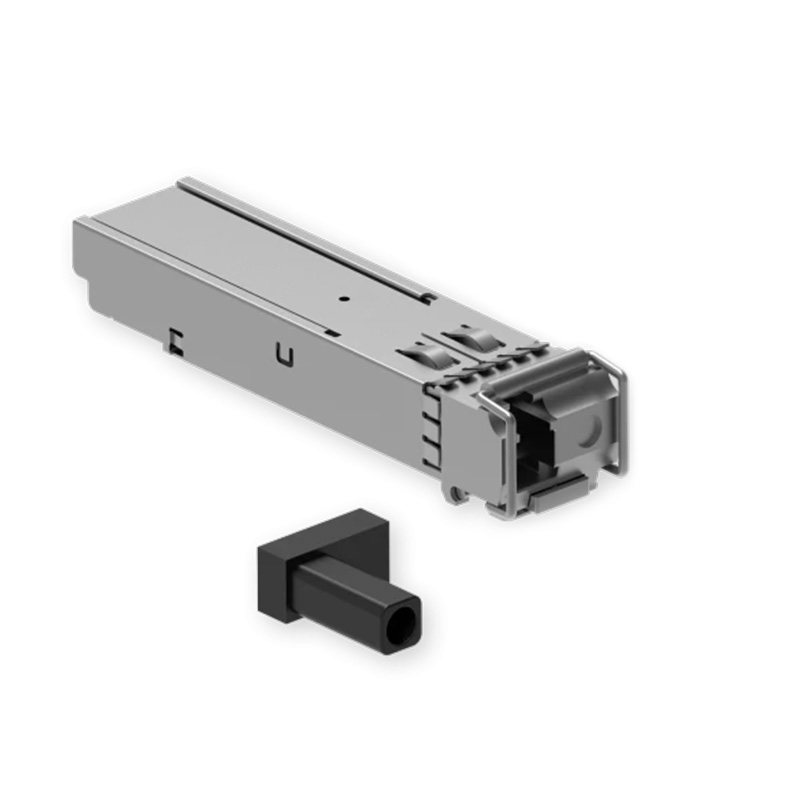

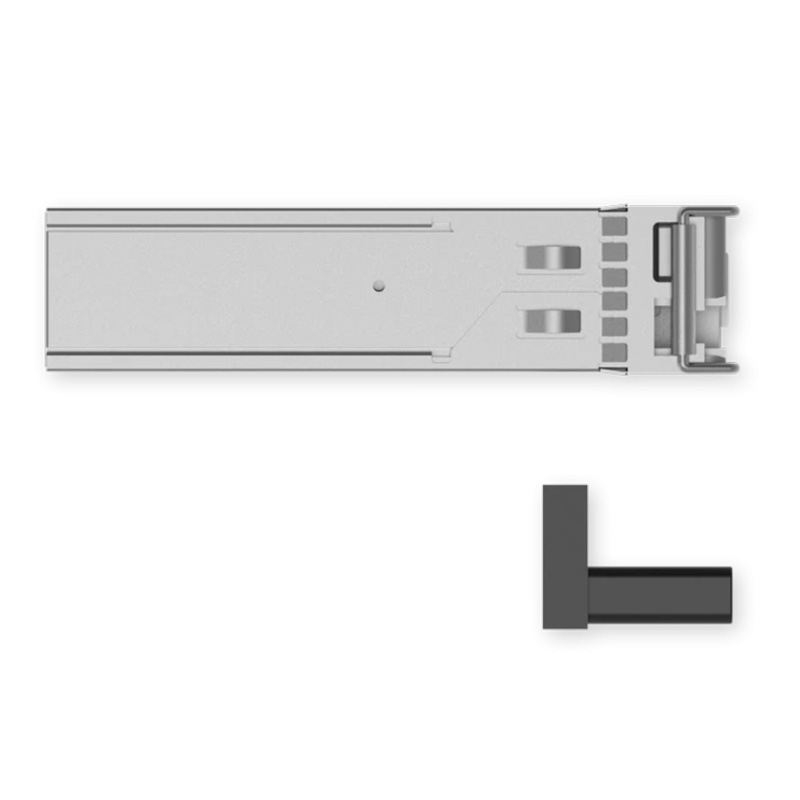

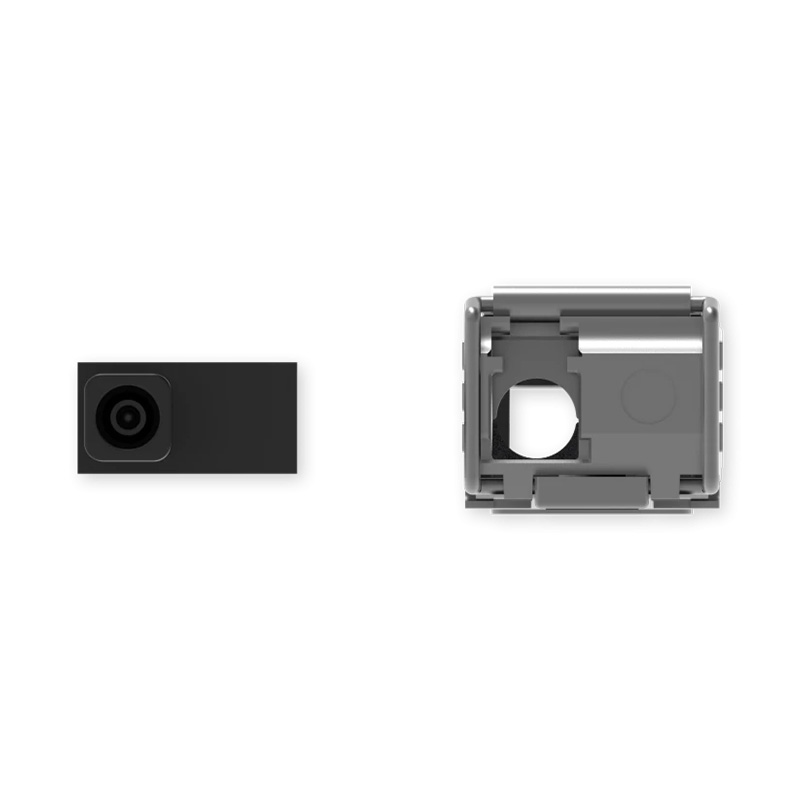

SFP Transceiver PR4LC21K: Expanding Connectivity for Teltonika Devices
The Teltonika PR4LC21K set includes singlemode SFP modules with a data transfer rate of up to 1.25 Gbps, designed for data communication over a single optical fiber with one LC connector. Thanks to BIDI technology, these modules enable bidirectional data transmission over a single optical fiber, eliminating the need for two separate fibers for transmitting and receiving signals. The modules operate at wavelengths of 1310 nm and 1550 nm, each used for opposite transmission directions, ensuring efficient bidirectional communication. They are suitable for connections over distances of up to 20 km.
The PR4LC21K module is compatible with selected Teltonika devices, such as RUTXR1, TSW200, TSW202, TSW210, and TSW212. It is ideal for use in industrial and telecommunication networks where long range and high reliability of data transmission are crucial requirements.
The package includes two modules forming one communication pair.
Key Features
- Data transfer rate: up to 1.25 Gbps
- BIDI technology for bidirectional transmission over a single fiber
- Max. power consumption: < 0.8 W
- Transmission distance: up to 20 km
- Wavelengths: TX 1310 nm, RX 1550 nm (typical)
- Compatible with standard SFP slots
Technical information can be found in the downloadable documents
