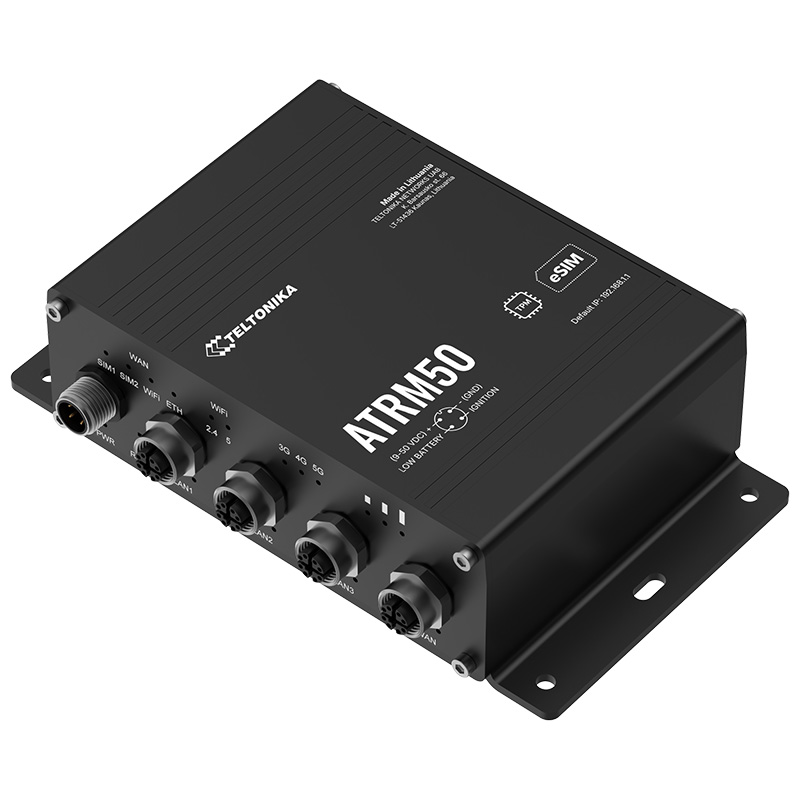

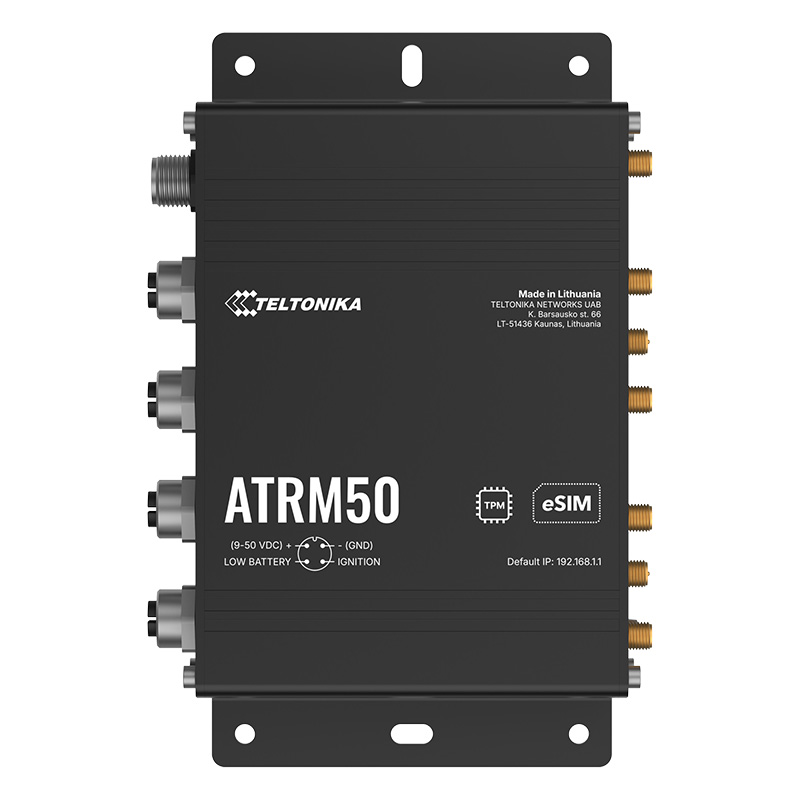

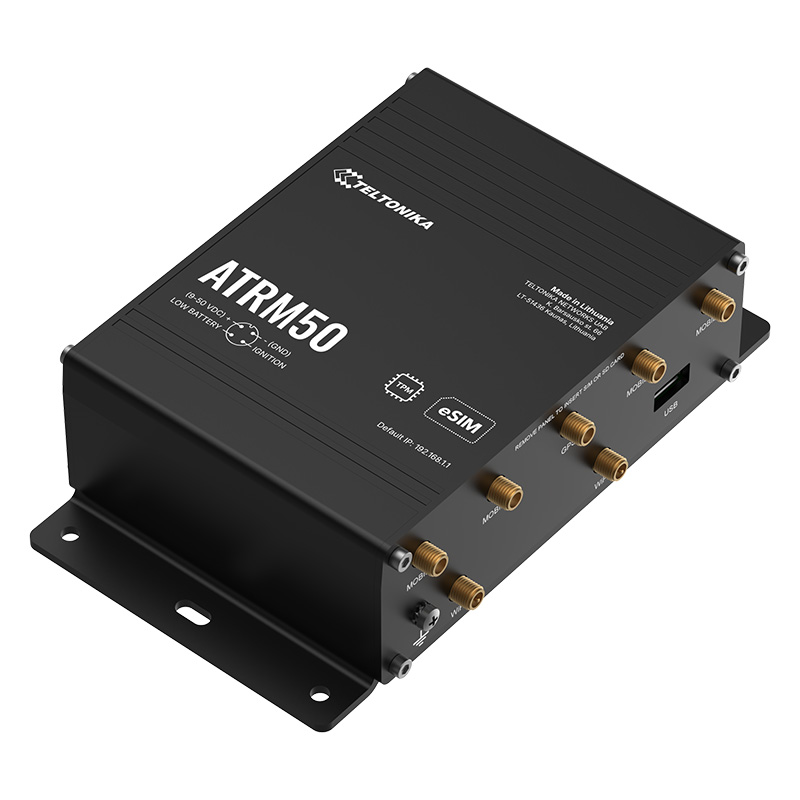

Teltonika ATRM50 – Router for Transportation Applications
The Teltonika ATRM50 is a robust 5G router designed for transportation applications, equipped with four gigabit Ethernet ports with M12 connectors and an M12 power input, ensuring secure and durable connectivity.
High-Speed Connectivity and Reliability
It offers ultra-high mobile network speeds of up to 3.4 Gbps and supports dual SIM cards along with eSIM™ technology, enabling automatic service switching in the event of an outage.
Certification for Railway and Transportation Environments
The device is certified according to EN 45545-2 and EN 50155 standards, confirming its safety and reliability in demanding railway systems, while also making it suitable for other transportation environments with high requirements for durability and stable connectivity.
Support for 5G SA and NSA Architectures
The SA and NSA architectures utilize 5G infrastructure. The main difference between NSA (Non-Standalone Architecture) and SA (Standalone Architecture) is that NSA uses 4G radio access network elements, while SA connects 5G devices directly to the 5G core network, with control signaling entirely independent of the 4G network.
RutOS Operating System and Remote Management
The ATRM50 transportation 5G router is powered by RutOS, which supports industrial protocols and various VPN networks. This Linux OpenWRT-based operating system is a significant advantage of Teltonika routers, offering advanced security features and compatibility with the Remote Management System (RMS).
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Key Features of ATRM50

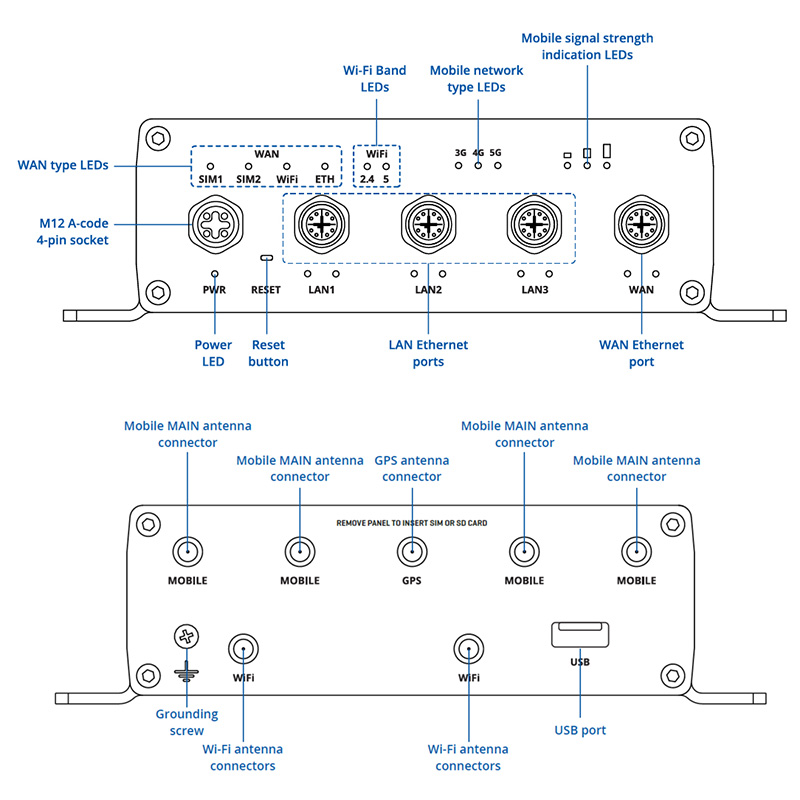

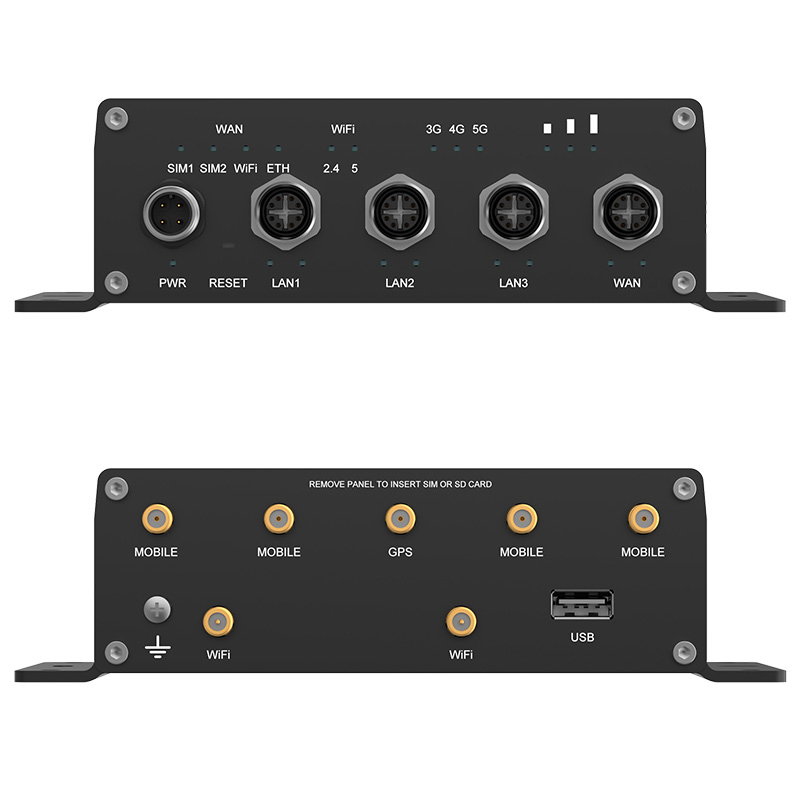

• M12 connectors: 4 × M12 X-coded Gigabit ports and 1 × M12 A-coded power input
• 802.11b/g/n/ac Wave 2 (Wi-Fi 5)
• 5G network: High mobile speed up to 3.4 Gbps
• Power supply: 9–50 V DC via 4-pin M12 connector
• Certifications: EN 45545-2 and EN 50155
• Dual SIM and eSIM support
• RutOS – easy-to-use, secure operating system
• Teltonika Remote Management System support
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• DIN rail mounting
• Ingress protection rating: IP30

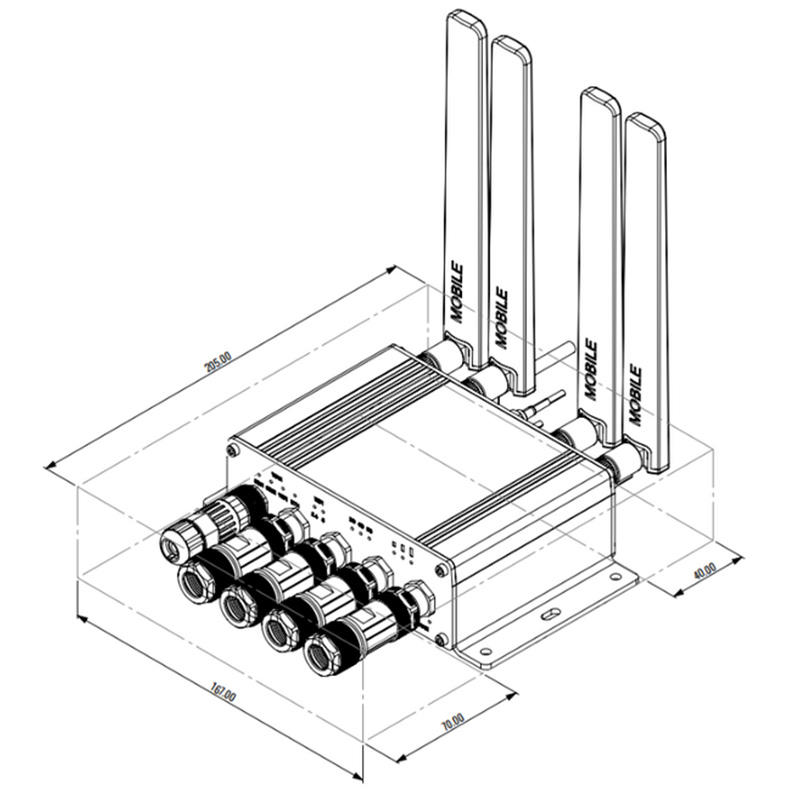

• Dimensions: 167 × 46.2 × 112.4 mm
• Weight: 550 g
Standard package contains:
• ATRM50 5G router
• Allen key
• QSG (Quick Start Guide)
More information can be found in the attached datasheet.
