Teltonika PR1KCO28 - LTE/GNSS/Wi-Fi Antenna
Teltonika omnidirectional LTE antenna for 4G/LTE, GNSS and Wi-Fi signal reception.
Comprehensive 5-in-1 connectivity solution

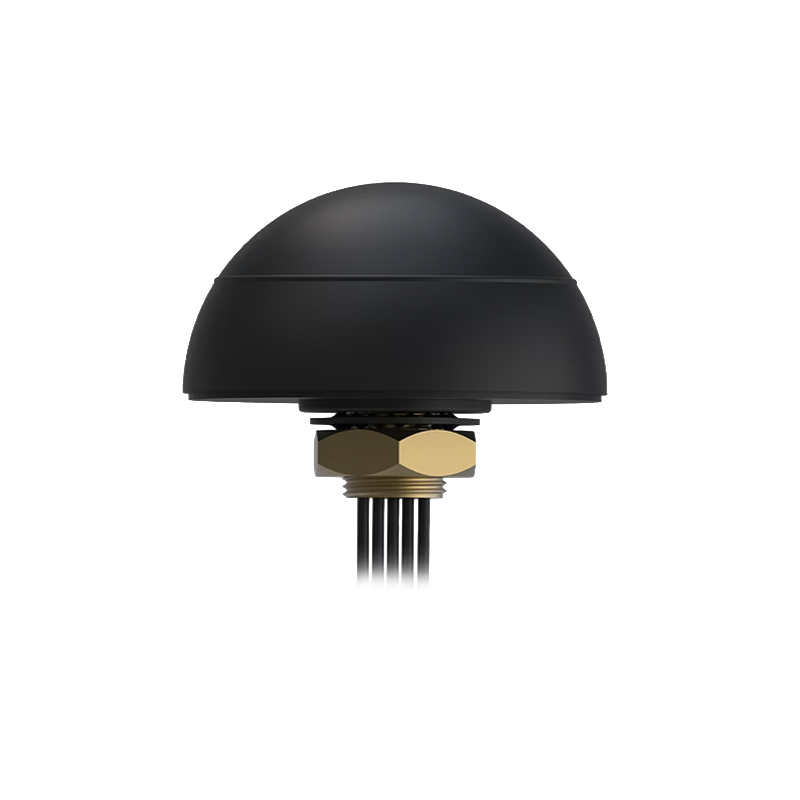

This versatile roof antenna in a robust puk design integrates five separate antenna elements into one housing. It combines LTE MIMO (2x2) for mobile data, Wi-Fi (2x2) for wireless networks and a GNSS antenna for precise positioning. It is ideal for advanced Teltonika routers that require multiple types of connections at the same time.
Durable IP65 construction and easy installation
The antenna is suitable for fixed installation, for example on the roof of vehicles using a screw mount. The housing made of highly durable ABS plastic and the IP65 protection level guarantee resistance to dust and water. This makes the antenna a perfect solution for demanding industrial applications, public transport and critical infrastructure.
Wide temperature range and antenna equipment

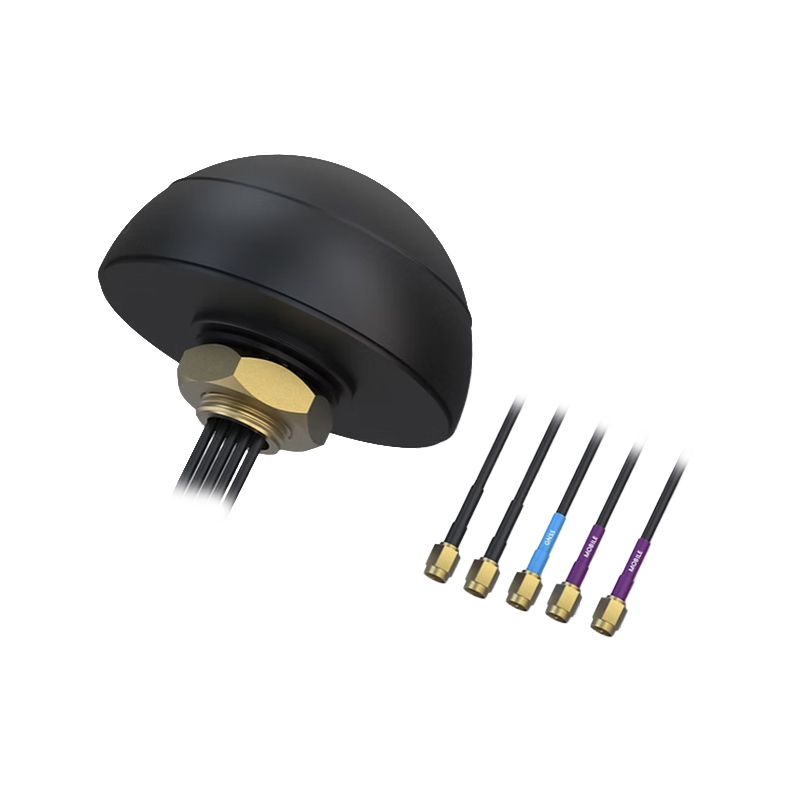

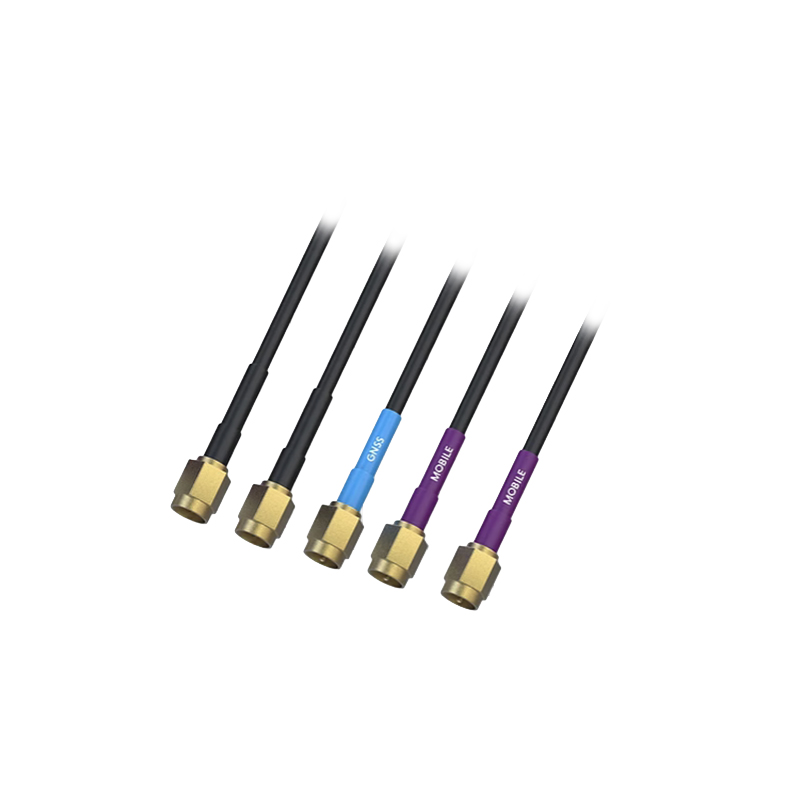

The device is designed for reliable operation in extreme environments with a temperature range from -40 °C to +85 °C. The antenna is equipped with five 3-meter RG174 cables, which allow flexible placement of the router. The cables are terminated with connectors: 3x SMA male (for LTE and GNSS) and 2x RP-SMA male (for Wi-Fi), which ensures full compatibility with most industrial network elements.
Compatibility with Teltonika devices
The antenna is fully compatible with industrial routers and access points:
Technical parameters:
- Mobile part (LTE): 698–960 / 1710–2690 MHz (gain 3.0 dBi)
- GNSS part: 1575–1610 MHz (LNA gain 28±2 dB)
- WiFi part: 2400–2483 / 4900–5825 MHz (gain 2.0 dBi)
- Mounting method: Mounting
- Protection level: IP65
More technical parameters can be found in the attached datasheet.
