Teltonika LTE Antenna

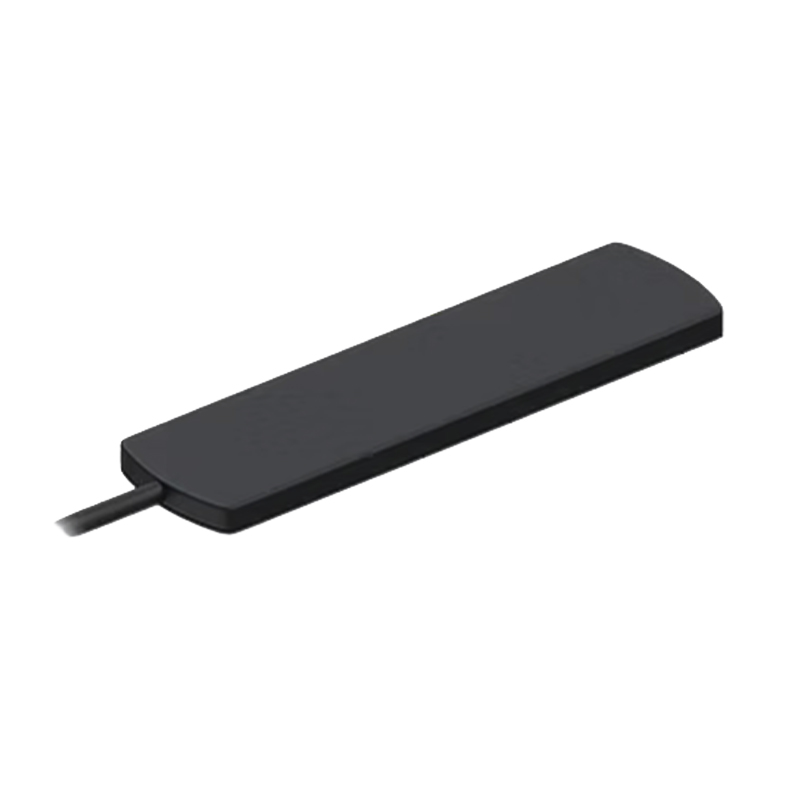

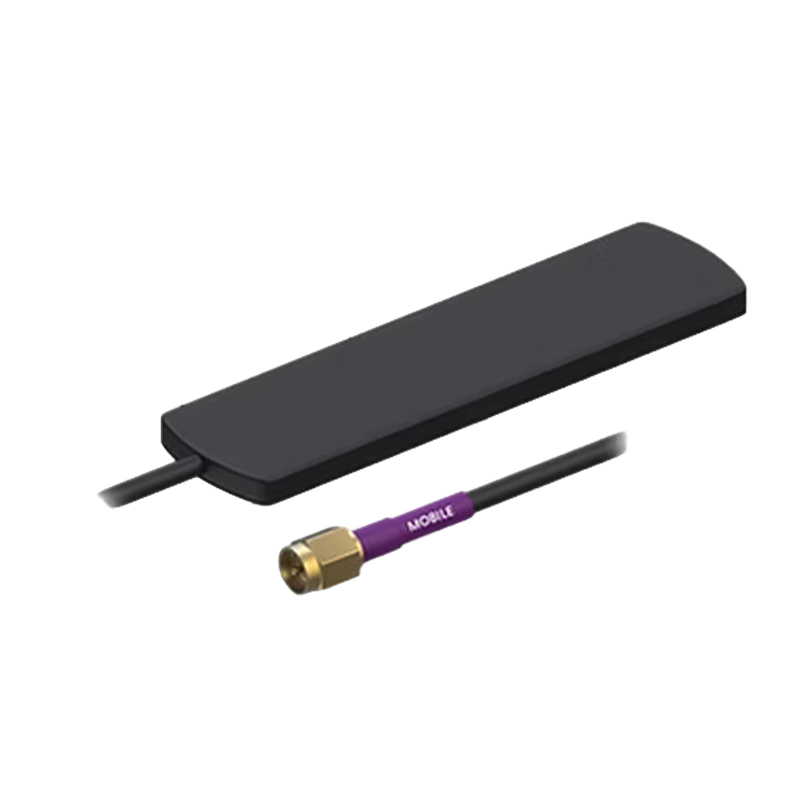

This omnidirectional 4G/LTE and GSM antenna is designed specifically for Teltonika industrial routers and gateways (RUT2xx, RUT361, RUT9xx, TRB1xx, TRB2xx, TRB501, TRM2xx). Its design offers maximum installation flexibility. Using high-quality 3M adhesive tape, it can be easily mounted on glass, plastic, or other smooth surfaces. This allows for signal optimization in scenarios where the device itself is housed in a metal cabinet or located in an area with poor coverage. Its robust construction ensures connection stability and long service life even in demanding daily industrial operations.

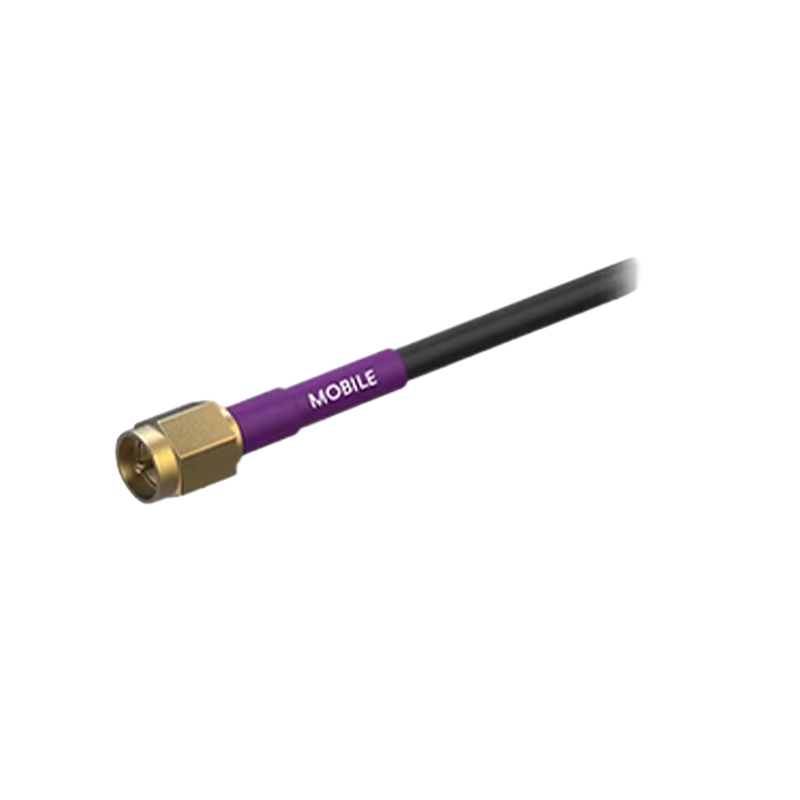

The LTE antenna features a 3-meter RG174 cable terminated with a standard SMA male connector.
Connector specifications SMA:
These are high-frequency connectors with a screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by protectors. It is also used as a standard connector in RF measuring technology. They are characterised by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174:
The cable labelled RG174 is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads, etc.
Technical Specifications:
- Antenna Type: Mobile (LTE/GSM), Adhesive
- Frequency Range: 698–960 / 1710–2690 MHz
- Gain: 2 dBi
- Connector: SMA Male
- Cable Length: 3 meters (RG174)
- Mounting Method: 3M Adhesive Tape
- Operating Temperature: -40 °C to +85 °C
- IP Rating: IP50
Technical parameters can be found in the attached datasheet.
