Teltonika RUTM31 – 5G Router for Demanding Applications
The Teltonika RUTM31 is a cost-effective, compact industrial 5G router that delivers connectivity for data-intensive IoT applications. Powered by 5G technology, the RUTM31 offers ultra-fast broadband connections with lower latency and higher bandwidth compared to previous-generation networks.
Interfaces and Network Capabilities

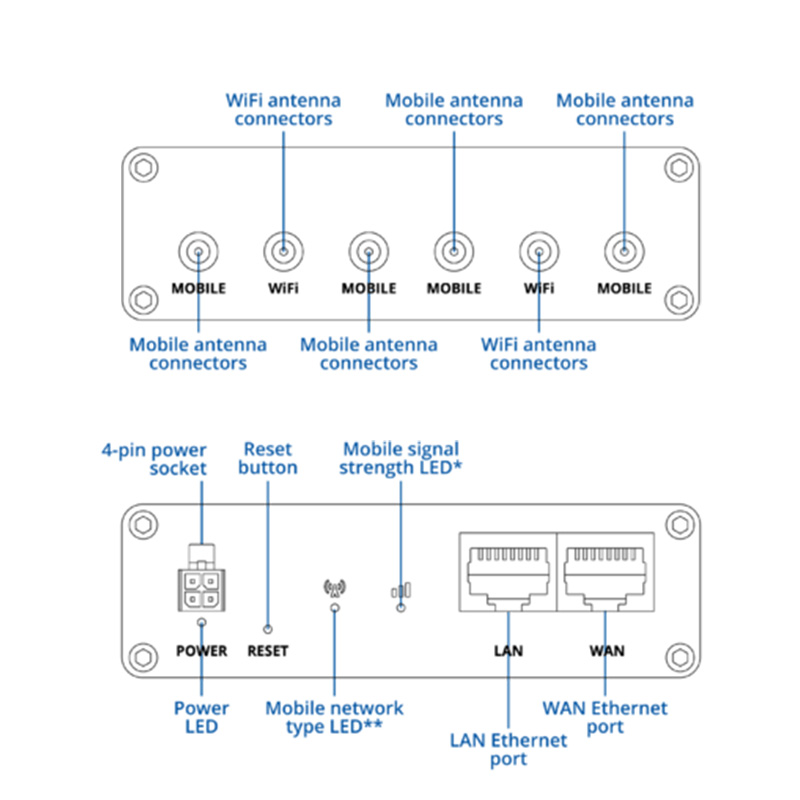

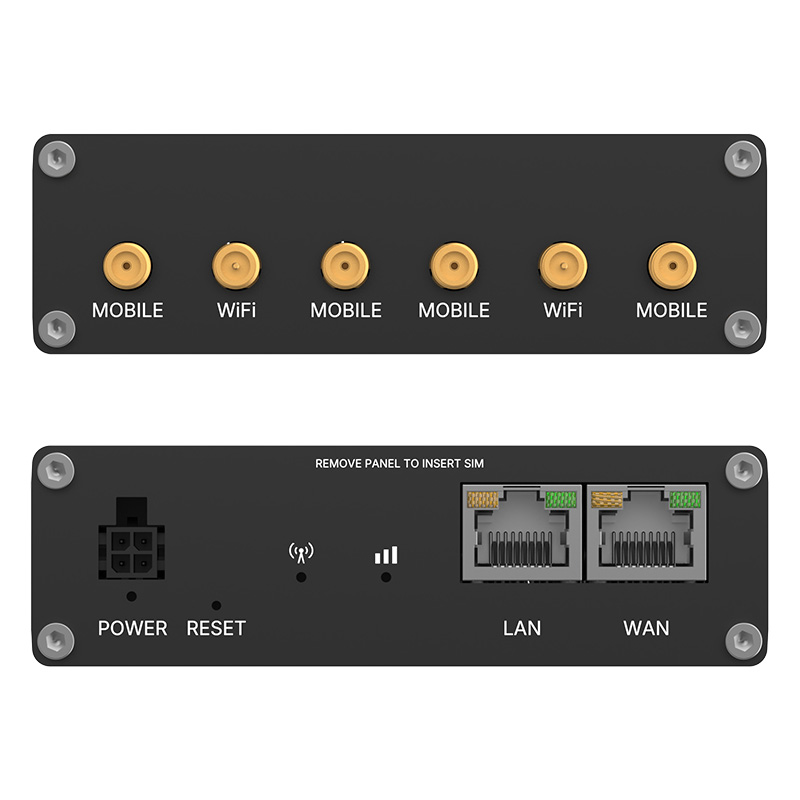

It features two Gigabit Ethernet ports (1 x WAN 10/100/1000 Mbps and 1 x LAN 10/100/1000 Mbps) and dual-band Wi-Fi. Additionally, it includes a digital input and output for remote control and monitoring. The wide range of interfaces ensures long-term network scalability and effortless upgrades.
Network Compatibility
This 5G router supports dual SIM cards, enabling automatic failover to a backup connection if one SIM fails. Backward compatibility with 3G, 4G Cat 12, and 5G makes the RUTM31 a smart choice for businesses seeking high-speed connectivity at a lower cost—even in areas with weaker signal coverage.
Support for 5G SA and NSA Architectures
RUTM31 is compatible with both SA (Standalone Architecture) and NSA (Non-Standalone Architecture) 5G infrastructures, ensuring high-speed and reliable connectivity. The main difference is that NSA uses elements of the 4G radio access network, while SA connects 5G devices directly to the 5G core network, with signaing independent of 4G.
Advanced Security and Network Protocols
A wide range of software functions, including SMS control, firewall, OpenVPN, IPSec, and RMS provides data security on this router. Supported network protocols include TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), and VXLAN.
RutOS Operating System and Remote Management
The industrial gateway Teltonika RUTM51 is equipped with the RutOS system. It is an operating system based on Linux OpenWRT, supporting industrial protocols and various VPN networks. This system offers advanced security features and compatibility with the RMS remote management platform, making it a strong advantage when choosing Teltonika routers.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
Key features of Teltonika RUTM31:
• Support for 5G and 4G LTE Cat 12 networks for maximum speed and reliability
• Support for 3G networks
• Support for DUAL SIM and
• Five Gigabit Ethernet ports RJ45, 10/100/1000 Mbps
• Ethernet interfaces: - 1 x WAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 41x LAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• RutOS operating system with VPN and industrial protocols support
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• DIN rail mounting
• Protection level: IP30

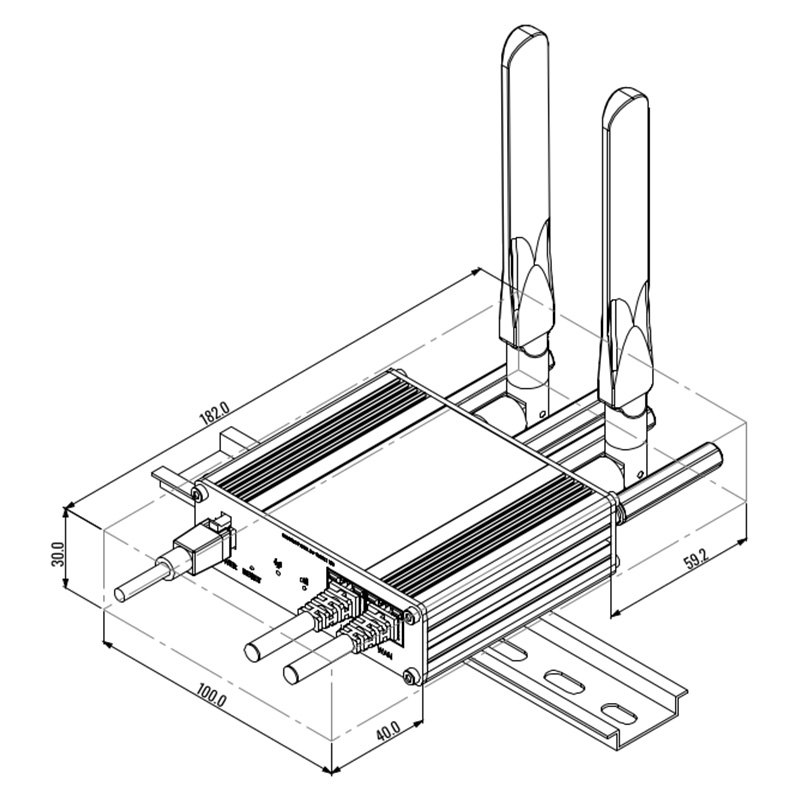

• Dimensions: 100 x 30 x 93.7 mm
• Weight: 319 g
Standard package contains:
• 5G LTE router RUTM31
• 18 W power supply
• 4 x 5G Mobile antennas (swivel, SMA male)
• 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (length 1.5 m)
• SIM adapter set
• 1 x hex key
• QSG (Quick Start Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
