Teltonika RUTM56 – Industrial Router with Dual 5G and 4G Modem
Teltonika RUTM56 is an industrial router with a dual modem, designed for reliable and high-speed connectivity in demanding environments. With integrated 5G and 4G LTE Cat 4 modems, the RUTM56 provides high-speed internet even in areas with variable network availability. The router also supports 3G and 2G networks, enabling seamless transitions between different generations of mobile networks and ensuring uninterrupted operation. Plug-and-play technology allows for quick setup without the need for additional configuration.
Technical Specifications of the RUTM56 Router
The Teltonika RUTM56 router is equipped with two modems – one 5G and one 4G. It also offers 1x WAN port, two SIM card slots, and eSIM support, increasing flexibility and connection reliability by enabling automatic switching between operators in case of primary network failure. Load balancing, Wi-Fi 5 (802.11b/g/n/ac), and five Gigabit Ethernet ports optimize performance and allow multiple devices to connect simultaneously.
Support for 5G SA and NSA Architectures
RUTM56 is compatible with both SA (Standalone Architecture) and NSA (Non-Standalone Architecture) 5G infrastructures, ensuring high-speed and reliable connectivity. The main difference is that NSA uses elements of the 4G radio access network, while SA connects 5G devices directly to the 5G core network, with signaling independent of 4G.
Advanced Security and Network Protocols
A wide range of software functions, including SMS control, firewall, OpenVPN, IPSec, and RMS provides data security on this router. Supported network protocols include TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), and VXLAN.
RutOS Operating System and Remote Management
The industrial gateway Teltonika RUTM51 is equipped with the RutOS system. It is an operating system based on Linux OpenWRT, supporting industrial protocols and various VPN networks. This system offers advanced security features and compatibility with the RMS remote management platform, making it a strong advantage when choosing Teltonika routers.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
Key features of the RUTM56:
• Dual Modem: 5G and 4G LTE Cat 4 for maximum speed and reliability
• Support for 3G and 2G networks for universal compatibility
• DUAL SIM and eSIM support

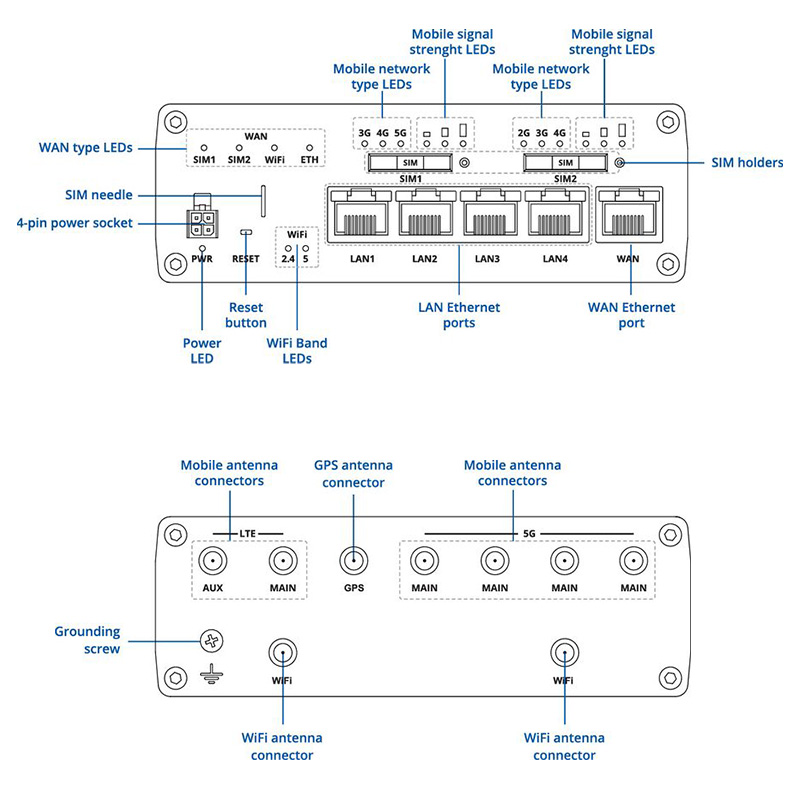

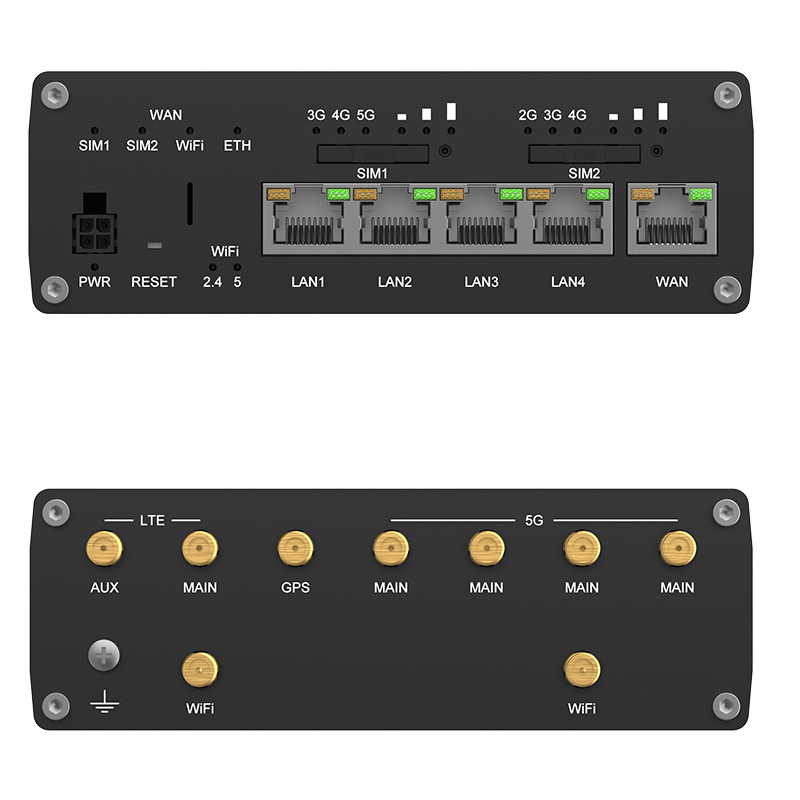

• Wi-Fi 5 (802.11ac) and five Gigabit Ethernet ports
• Ethernet interfaces: - 1 x WAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 4 x LAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• Data transfer rate:
- Modem 1:
5G - DL: 2.4/3.4 Gbps, UL: 900/550 Mbps
4G (LTE) - DL: 1600 Mbps, UL: 200 Mbps
3G - DL: 42 Mbps, UL: 5.76 Mbps
- Modem 2:
4G (LTE) - DL: 150 Mbps, UL: 50 Mbps
3G - DL: 21 Mbps, UL: 5.76 Mbps
2G - DL: 236.8 Kbps, UL: 236.8 Kbps
- Wi-Fi:
Dual Band MU-MIMO DL: 867 Mbps
• RutOS operating system with VPN and industrial protocol support
• SA (Standalone Architecture) and NSA (Non-Standalone Architecture) support
• DIN rail mounting
• Protection class: IP30

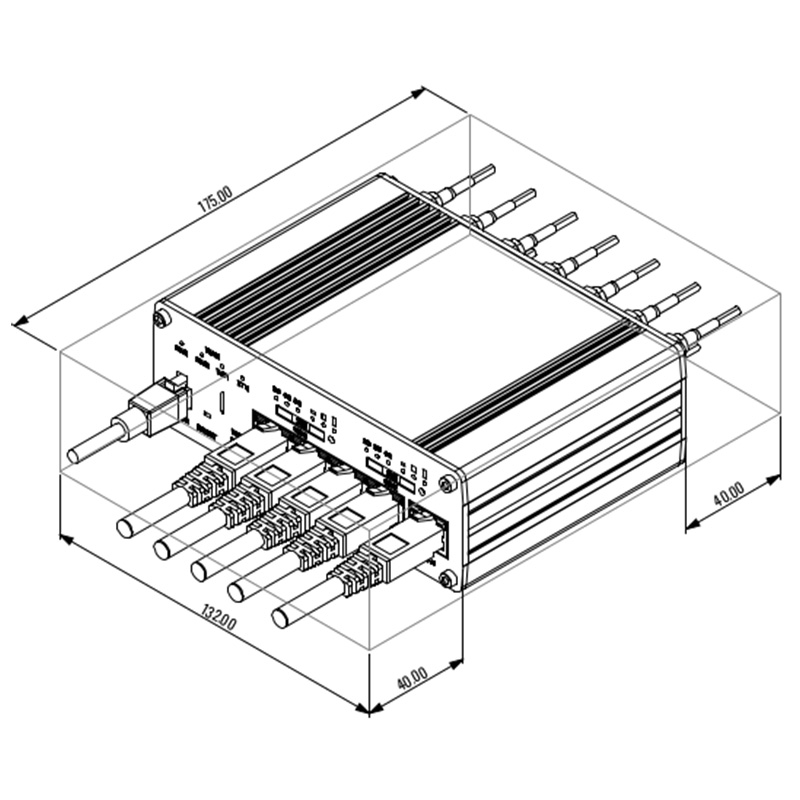

• Dimensions: 132 x 44.2 x 95 mm
• Weight: 515 g
Standard package contains:
• Teltonika RUTM56 Router
• 24 W PSU
• 6 x Mobile antennas (swiwel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
For this router Teltonika RUTM56 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
