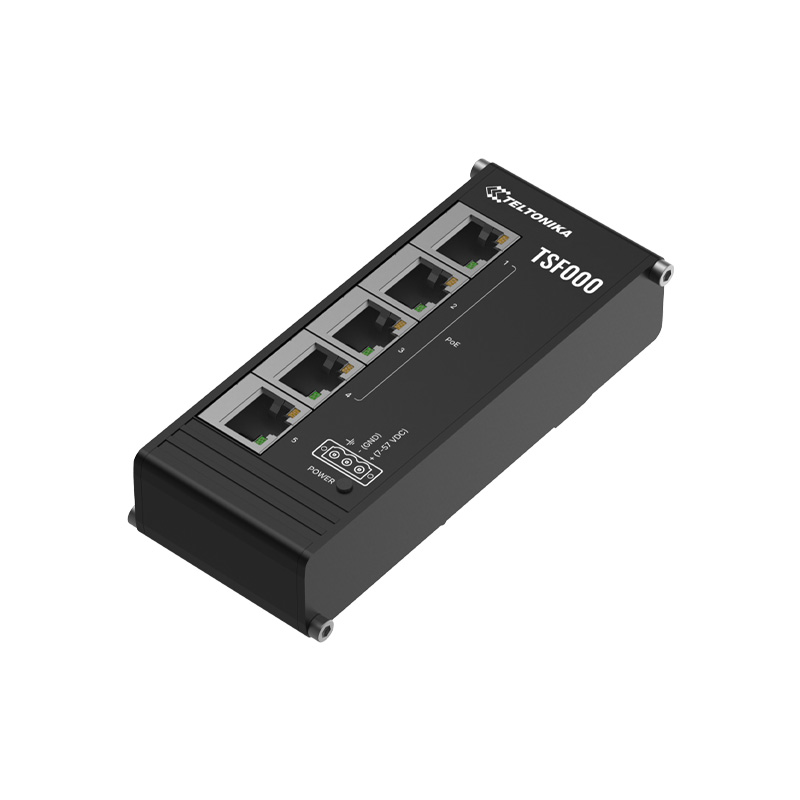

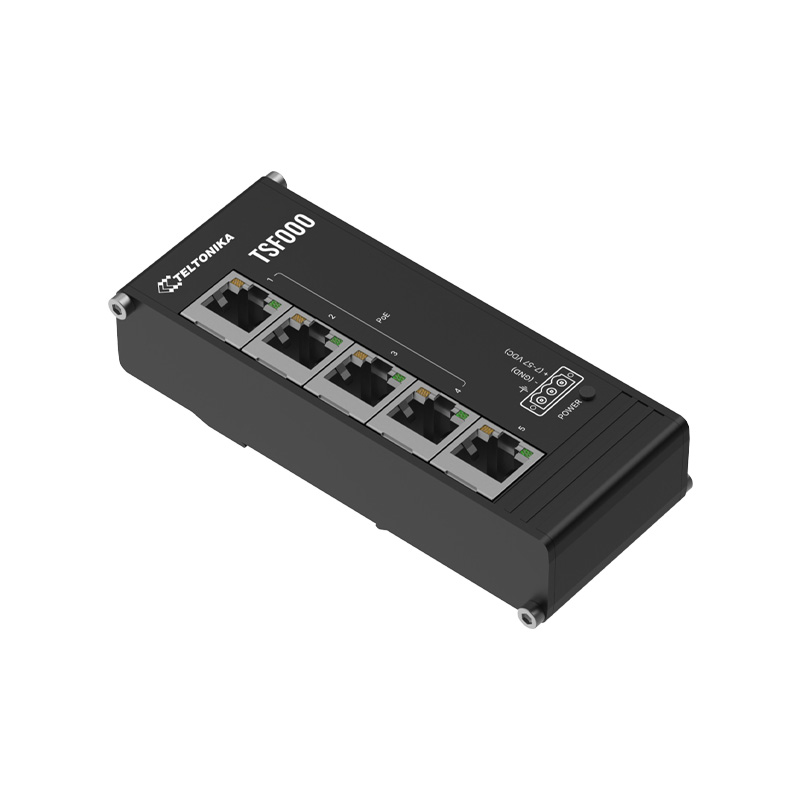

Teltonika TSF000 Industrial Ethernet Switch
Teltonika TSF000 is a compact unmanaged switch equipped with five 10/100 Mbps Ethernet ports supporting automatic MDI or MDIX crossover, specifically designed for installation in space-constrained industrial environments. Thanks to its construction and PoE+ support according to IEEE 802.3at, it represents an ideal solution for powering and connecting devices in smart city systems, industrial automation, and surveillance applications.
Extremely low profile
The switch features an extremely low profile, with a height of only 28 mm and a weight of just 142 g, allowing installation even in very small cabinets and confined spaces where standard devices cannot fit. The anodised aluminium housing ensures effective heat dissipation and durability in industrial environments.
High-performance PoE+ power supply

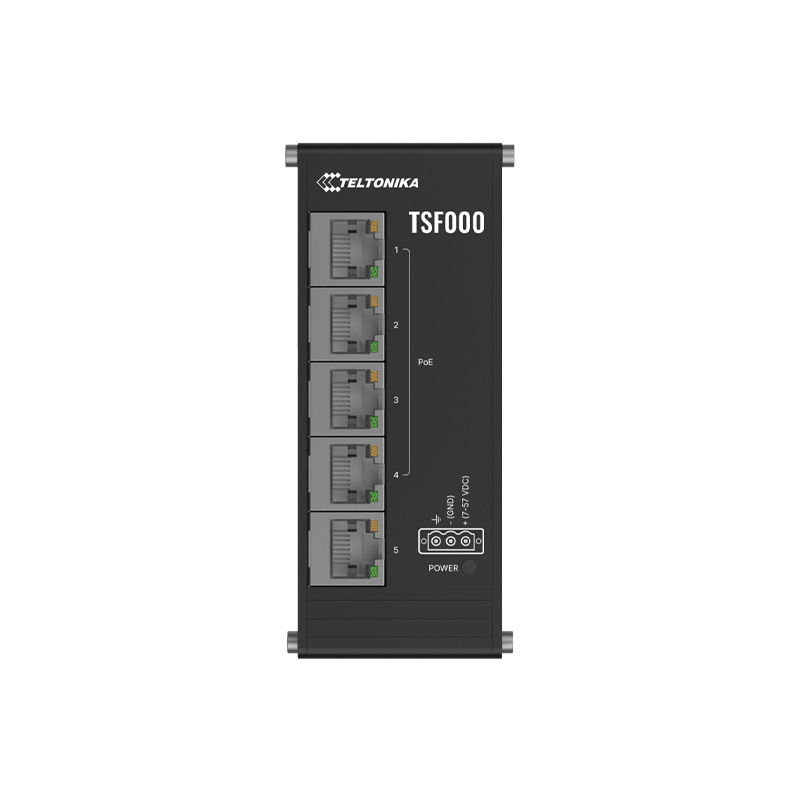

The device is equipped with five Ethernet ports, four of which support IEEE 802.3af PoE and IEEE 802.3at PoE+ standards. The total power budget reaches up to 120 W, with a maximum of 30 W per port, which is sufficient to power four devices such as high performance IP cameras, wireless access points, or industrial sensors.
Flexibility and easy installation

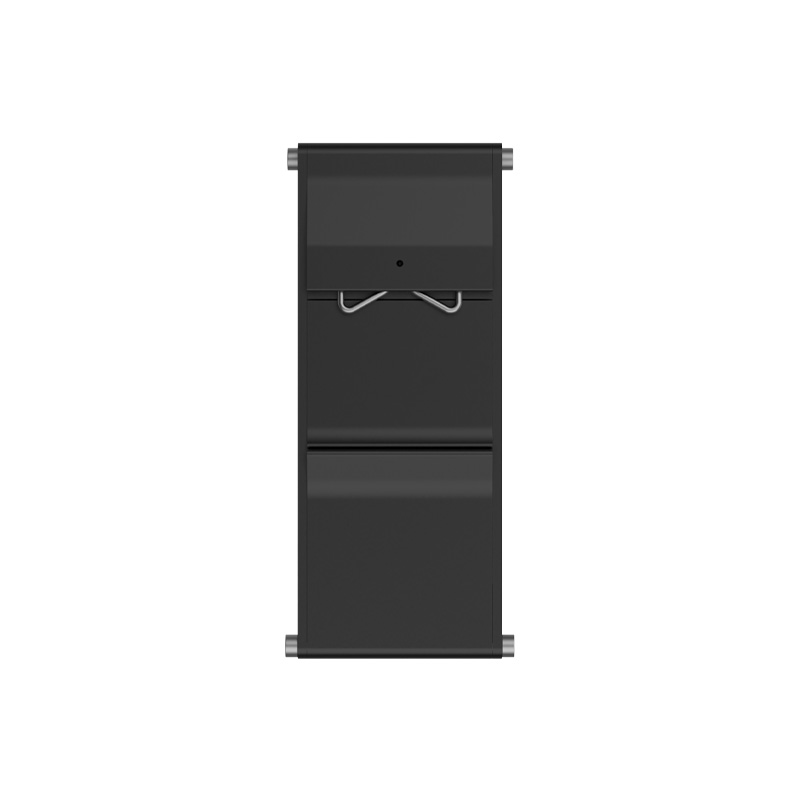

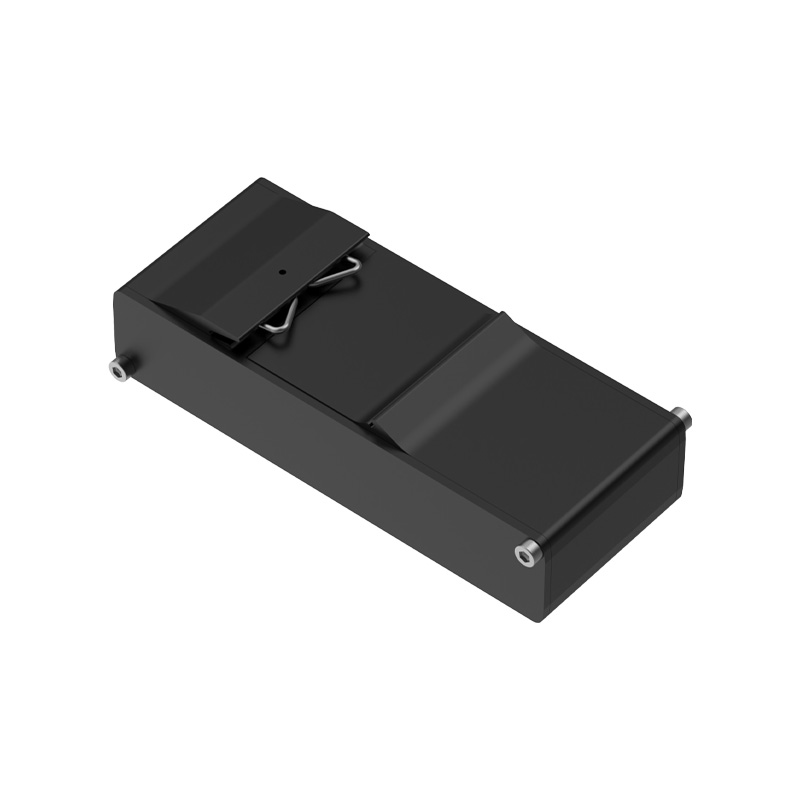

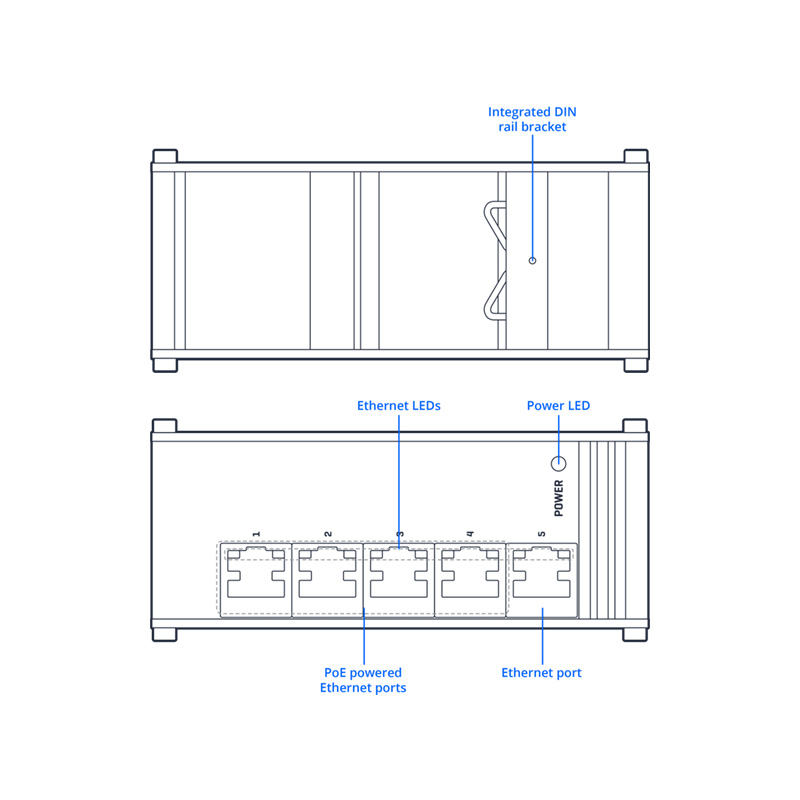

Thanks to support for a wide input voltage range of 7 to 57 VDC, the switch can be easily integrated into various industrial networks. Installation is simplified by the integrated DIN rail mounting bracket.
Key features
• Five 10 or 100 Mbps Ethernet ports with four PoE+ outputs for powering end devices
• Operating temperature range: -40 °C to +75 °C
• Supported voltage range 7 to 57 VDC with overvoltage and reverse polarity protection
• Durable anodised aluminium enclosure
• Protection rating IP30

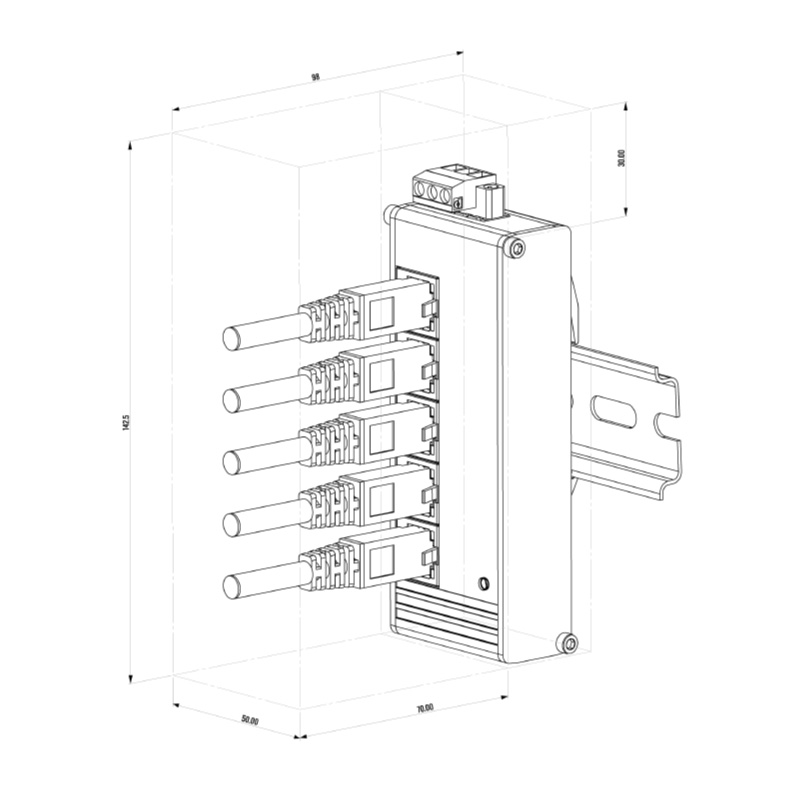

• Compact dimensions 113 × 28 × 50 mm, suitable for installation in narrow spaces
• Weight 142 g
Package contains:
• TSF000 switch

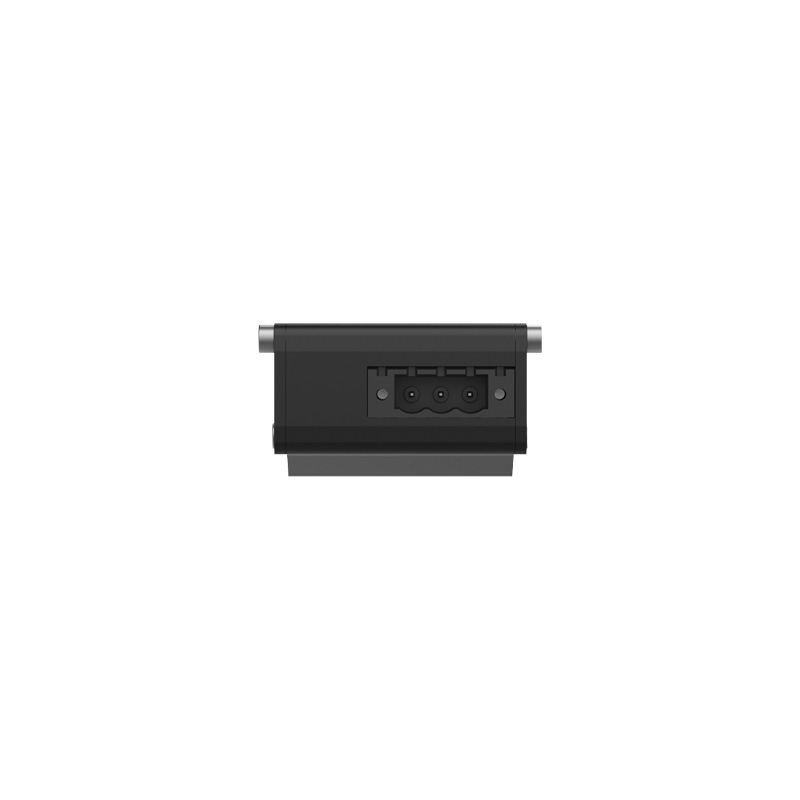

• 3-pin industrial power connector
• Quick Start Guide
We recommend using the detailed manual and documentation for configuration. Official materials can be found here.
Technical parameters are available in the attached datasheet.
