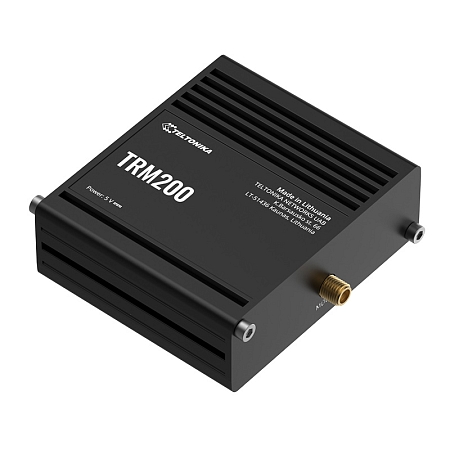

Teltonika TRM200 Industrial Modem 4G
Teltonika TRM200 is an industrial LTE Cat 4 modem that provides reliable 4G connectivity with full backward compatibility for 3G and 2G networks. This modem is equipped with a microUSB port that serves both for power supply and data connectivity.
The TRM200 is compatible with operating systems such as Linux and Windows and supports one SIM card and a detachable antenna with an SMA connector for better signal coverage. Teltonika TRM200 offers data transfer speeds of up to 75 Mbps for downloading and 50 Mbps for uploading.
Simple DIN rail mounting and compact dimensions allow easy placement of the device in any server cabinet, socket, or other small spaces. Thanks to its flexibility and robust design, the TRM200 4G modem is an ideal solution for industrial applications requiring reliable wireless connectivity.
Key Features:
• Mobile 4G / LTE (Cat 4), 3G, 2G
• MicroUSB power supply, 5 VDC
• SIM slot
• 1 x SMA connector for antenna connection
• 1 x microUSB connector
• Status LEDs
• Protection level: IP30
• Operating humidity: 10% to 90% non-condensing
• Operating temperature: -40 °C to 75 °C
• Dimensions: 74.5 x 25 x 64.5 mm
• Weight: 274 g
Standard package contains:
• Teltonika LTE Modem TRM200
• LTE antenna (articulated, SMA male)
• Power cable - Micro-USB (length 0.8 m)
• 1 x Allen key
• QSG - manual
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet and quick manual.
