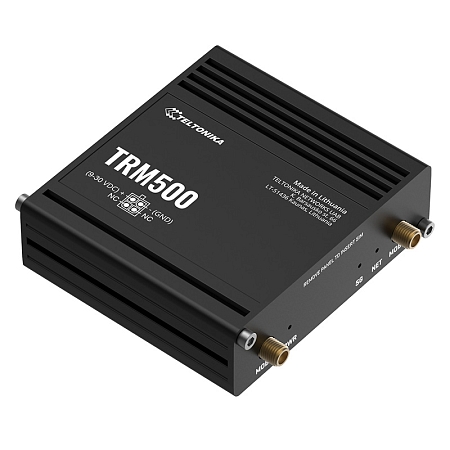

Teltonika TRM500 – Industrial 5G Modem
The Teltonika TRM500 industrial 5G modem is designed for demanding applications requiring reliable, high-speed mobile connectivity. With support for the latest 5G/4G/LTE (Cat 19) technologies, it provides ultra-low latency and high data throughput of up to 3.4 Gbps download and 550 Mbps upload. It also offers backward compatibility with 4G (Cat 19) and 3G networks, ensuring functionality even in areas without full signal coverage.
Durability and Power Flexibility
The modem features a robust aluminium housing with IP30 rating, providing resistance to mechanical damage even in harsh industrial environments. It supports a wide power input range from 9 to 30 V DC, or can be powered via USB-C port (5 V, min. 3 A), allowing for flexible integration into various systems and applications.
Easy Installation and Compact Design
Thanks to its compact size and DIN rail mounting option, the modem can be easily installed in tight spaces or electrical cabinets. The USB-C interface supports both data communication and power delivery simultaneously, simplifying connectivity and reducing cable clutter.
This Teltonika TRM500 5G modem is an ideal choice for industrial applications where speed, reliability, and secure connectivity management are essential.
Key Features of Teltonika TRM500
• Connectivity: 5G (NSA, 4x4 MIMO, up to 3.4 Gbps DL, 550 Mbps UL), 4G/LTE (Cat 19)
• Power supply: 9–30 V DC or USB-C
• Easy DIN rail mounting
• SIM card slot
• 4 × SMA connectors for antenna connection
• 1 × USB-C connector
• Status LED indicators
• IP30 ingress protection rating
• Operating humidity: 10% to 90% non-condensing
• Operating temperature: -40 °C to 75 °C

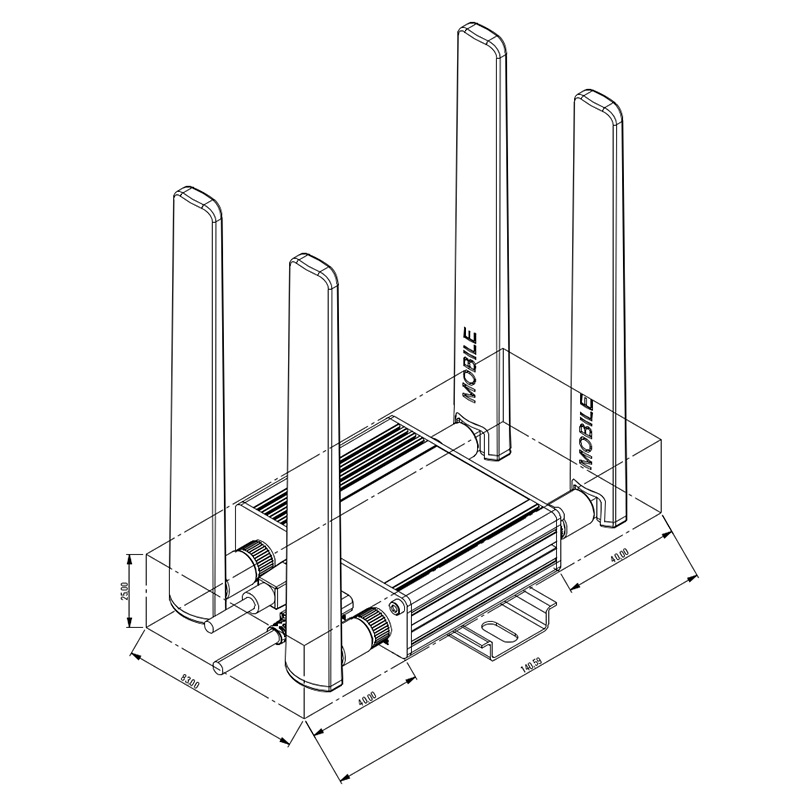

• Dimensions: 83 × 25 × 85.4 mm
• Weight: 94.5 g
For this modem Teltonika TRM500 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Standard package contains:
• TRM500 modem
• 9 W power adapter
• 4 × 5G mobile antennas (hinged, SMA male)
• 1 × Allen key
• USB-C cable (0.8 m length)
• SIM adapter kit
• QSG (Quick Start Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Technical parameters can be found in the attached datasheet.
