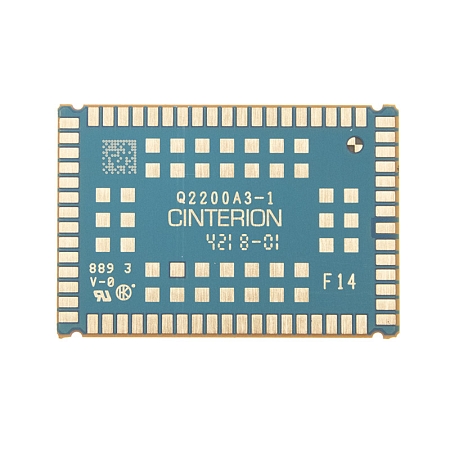

Thales Gemalto Cinterion BGS2-E Rel. 4.5

The M2M Cinterion BGS2-E Rel. 4.5 Wireless Module offers full voice capabilities, high-speed GPRS data DL: max.85.6 kbps, UL: max 42.8 kbps and best-in-class low power consumption and the lowest power consumption in its class.

The module delivers Dual-Band GSM/GPRS (2G) with advanced SSL encryption for IP-based services, jamming detection, an analog and digital audio interface, and generic flash access to the module's internal memory.

This module BGS2-E Rel. 4.5 (Dual-Band with GPRS class 10) is designed for EMEA (Europe, Middle East, Africa).

• Dimensions: 27.6 x 18.8 x 2.7 mm
• Cast: LGA
• Technology: Dual-Band 2G Frequency (900/1800 MHz)
• Frequency: GSM/GPRS
• Temperature range: -40 °C to + 90 °C
• EDGE data transfers: No
• GPRS Data Streams: Multislot Class 10
• CDMA: No.
• CSD: Yes
• Audio analog /digital interface: 1x / x
• USB Interface: No.
• Java embedded: No.
• SMS: Yes
• Fax: Yes
• TCP/IP: Yes
• Antenna connector: via LGA pins
• Multi GPIO's (digital): Yes, 6x
• RoHS and EuP compliant

More information can be found in the attached datasheet.

The Thales Group is, among other fields, a major manufacturer of Gemalto Cinterion wireless modules and the world leader in encryption and digital security as a manufacturer of payment and identification card chips. SECTRON is a European authorized distributor of Gemalto.


Certifikace: CE / R&TTE / GCF / FCC / PTRCB / UL / IC Power supply: 3.3 – 4.5 V
Operational temperature: -40 to +90 °C Dimensions: 27.6 × 18.8 × 2.7 mm
Extension: Radio Link Stability Monitoring / Real time clock / Customer Flash Storage Technology : GSM
Weight: 6 g
