Thales Gemalto Cinterion ELS61 US Terminal LAN Rel.2

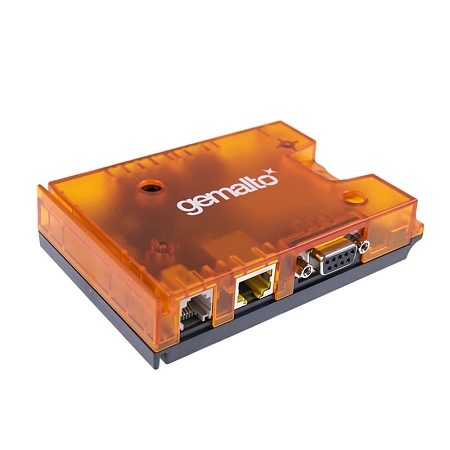

The Cinterion ELS61T-US terminal is a simple and reliable plug-and-play communications device with standard Serial and Ethernet connections. Customer specific features can be implemented via optional embedded Java™ applications which have access to additional GPIO interface signals via specific connectors. Technology LTE Cat.1 enables data download at a speed of 10.3 Mbit/s download and 5.2 Mbit/s uplink.
The Cinterion ELS61T model is intended for applications in industry, transport, energy, remote monitoring and other areas where communication using a mobile network is needed.
Features:
• LTE (2,4,5,12), 3G (2,4,5)
• Power Supply: Input voltage range 8 – 30 V
• High Speed Serial Interface (up to 920 Kbps)
• 20 pin header with GPIO’s, power out, SPI, I²C or 4-wire second serial interface
• Programmable hardware watchdog
• Java™ Open Platform
• Ethernet (PoE)
This ELS61T-US model is intended for use in the USA (AT&T) regions.
SECTRON recommends to buy the following accessories:
AM-RT-POWR - Power supply 12V / 1A, RJ12 connector
AM-RT-ETH - Ethernet cable, 1.5m, flat, black
AO-ALTE-SMA5 - Antenna GSM/UMTS/LTE FLAT Stick 690-2700 MHz, 0 dBi, IP68, SMA(m)
AM-EHST-DIN-SL - Mounting kit for DIN rail for EHS6T, aluminium
More information can be found in the attached datasheet.
The Thales Group is, among other fields, a major manufacturer of Gemalto Cinterion wireless modules and the world leader in encryption and digital security as a manufacturer of payment and identification card chips. SECTRON is a European authorized distributor of Gemalto.
