Product code: GP-ACU-360-GPS
Producer: Trimble
Product code: 106406-05

Trimble Acutime 360 Smart antenna (Default GPS) (106406-05)

Product code: GP-ACU-360-GPS
Producer: Trimble
Product code: 106406-05

Trimble Acutime 360 Smart antenna (Default GPS) (106406-05)

The Trimble® Acutime ™ 360 Multi-GNSS smart antenna supports a range of GNSS technologies such as GPS, GLONASS, Beidou, Galileo.

441.24incl. VAT (21%) / pc

excl. VAT 364.66 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

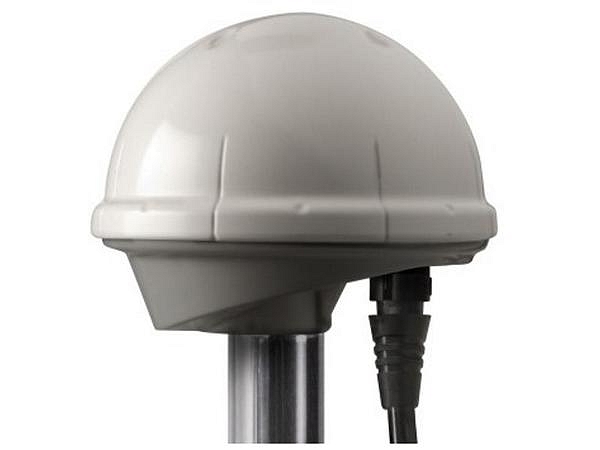

TRIMBLE Acutime 360 Smart antenna (Default GPS)

The Trimble® Acutime ™ 360 Multi-GNSS smart antenna supports a range of GNSS technologies such as GPS, GLONASS, Beidou, Galileo. The robust housing and degree of protection IP67 ensure high performance even in the most demanding working conditions.

This antenna is the perfect solution for precise timing and network synchronization needs, including broadband wireless applications.

Key Features:

• Multi-GNSS (GPS, GLONASS, Beidou, Galileo)
• Simultaneous GPS / GLONASS or GPS / Beidou tracking
• Timing pulse synchronized up to 15 nanoseconds (one sigma) from GNSS / UTC
• Starter kit available
• Temperature operation -40 to + 85 °C
• IP67 protection against water, dust and other extreme conditions

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector 12-pin
Maximum input power 10  W Power voltage 5.0 – 36.0 V DC
Polarization R.H.C.P. Execuion External
Dimensions 95 x 72.5  mm Directivity Directional
Technology GPS , GLONASS , Galileo , Beidou Weight 154  g
Type of attachment Screw Mount IP Code IP67

441.24incl. VAT (21%) / pc

excl. VAT 364.66 € / pc
