Trimble Acutime 360 Starter Kit-GNSS

Product code: GP-ACU-360-SK-GNSS /Manufacturer: Trimble

9

776.88 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 692.57 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

TRIMBLE Acutime 360 Starter Kit-GNSS

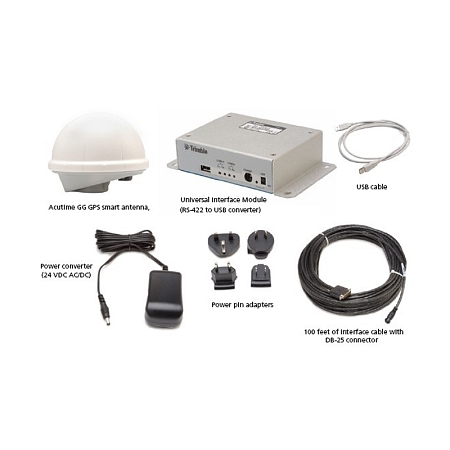

Acutime 360 Developer Kit - designed to integrate modern technology into your system. The development kit includes Acutime 360 (RS-422 interface), USB cabel, user manual, RS-422 to USB converter, power adapter and software developed for Microsoft® Windows® for monitoring and communication.

The starter kit contains a USB to RS-422 converter, so you can connect it to your PC (via the USB port) conveniently. The unit will appear as two additional COM ports to application software (i.e. on a PC with only COM1 onboard, the unit will appear as COM2 and COM3).

This antenna is the perfect solution for precise timing and network synchronization needs, including broadband wireless applications. It provides an extremely cost-effective and independent (within the firewall) timing source for any application, such as fault detection systems and synchronization of wireless networks.

Designed for long-term reliability, the Acutime 360 smart antenna is corrosion-resistant and weatherproof and has a rounded top that facilitates run-off from the elements.

Key Features:

• Multi-GNSS RS-422 Smart Antenna
• GPS, GLONASS, Galileo, Beidou
• Assisted GPS (A-GPS)
• Reduced TTFF (Time-To-First-Fix)
• 12-channel GPS operation
• Starter kit available
• Temperature operation-40 to +85°C

More information can be found in the attached datasheet.

Parameters

Power supply: 5.0 – 36 V Operational temperature: -40 to +85 °C
Dimensions: 95 x 72.5 mm Standard boundary: 2x RS-232
Technology : GPS / GLONASS / BEIDOU / GALILEO Weight: 154 g

Documents for download

GP-ACU-360-SK-GNSS.pdf (529.579 kB)
