Trimble Thunderbolt E Starter Kit (62989-50)

Product code: GP-THUNDERBOLT-E-SK /Manufacturer: Trimble /Produktový kód: 62989-50

thunderbolte-starter-kit

1 652.65 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

TRIMBLE Thunderbolt E Starter Kit

TRIMBLE Thunderbolt E Starter Kit complete kit including GPS receiver, antenna, software and power supply.

Thunderbolt E is the ideal solution for applications that require highly accurate time in the wireless industry. It is also used to ensure accurate time and frequency in WiMAX and LTE-tdd networks and in digital broadcasters' networks.

The Thunderbolt E receiver timer outputs a 10 MHz reference signal and a 1 PPS signal synchronized with GPS or UTC time. To increase accuracy, the receiver performs measurements based on data from many satellites, up to all satellites in its range.

PPS signal integrity is ensured by T-RAIM (Stand-Alone Receiver Time Integrity Monitoring).

The Thunderbolt E GPS clock with Trimble Bullet ™ antenna creates a system that provides reliable performance in complex electromagnetic environments. The system can be easily calibrated for different cable lengths.

 Key properties:

 • 10 MHz and PPS reference
 • Complete kit including GPS receiver, antenna, software and power supply
 • Improve CMC (Calibration and Measurement Capability) under ISO/IEC 17025
 • Lock your lab instruments to a traceable source
 • Add value to existing equipment

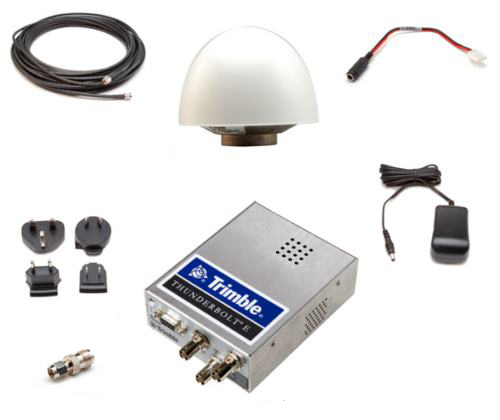

 Package contains:

 • Thunderbolt E modulus
 • Trimble Bullet antenna(5V) TN
 • Power Adapter Cable
 •  Power Converter (24V AC /DC)/adapter
 • BNC/TNC-M to converter
 • 22 mRG6 cable with TNC
 • Trimble monitoring software

 More information can be found in the attached datasheet.

Parameters

Operational temperature: -20 až +75 °C Dimensions: 127 x 10 x 40 mm
